LeMotech IP55 ABS Plastic Junction Box – Product Overview
The LeMotech IP55 Junction Box is a high-quality electrical enclosure designed to protect sensitive electronics and electrical components in demanding environments. With its rugged ABS plastic construction and IP55 rating, this junction box provides exceptional protection against water, dust, and physical impact. Measuring 2.91″ x 1.73″ externally (74mm x 44mm), this compact yet durable enclosure offers a recommended internal space of 2.22″ x 1.59″ (56.5mm x 40.4mm) for housing your electrical components. This junction box features an easy-to-install design with pre-drilled mounting holes and includes all necessary hardware for quick setup. Its white ABS plastic material offers excellent electrical insulation properties while maintaining resistance to UV radiation, chemicals, and temperature fluctuations. The IP55 rating ensures reliable operation in outdoor and industrial settings where exposure to water jets and dust is common. With CE and RoHS certifications, this enclosure meets international safety standards while being free from hazardous substances. Ideal for a wide range of applications, the LeMotech junction box provides secure protection for electrical connections, control systems, and electronic components in environments such as outdoor lighting installations, industrial automation systems, garden equipment, and marine electronics. Its versatile design allows for easy modification and customization to suit specific project requirements. Buy it in our Amazon shop now!Key Features
- IP55 Certified Water and Dust Protection
- High-Quality ABS Plastic Construction
- Excellent Impact Resistance
- Superior Electrical Insulation Properties
- CE and RoHS Compliant
- Easy Installation with Included Hardware

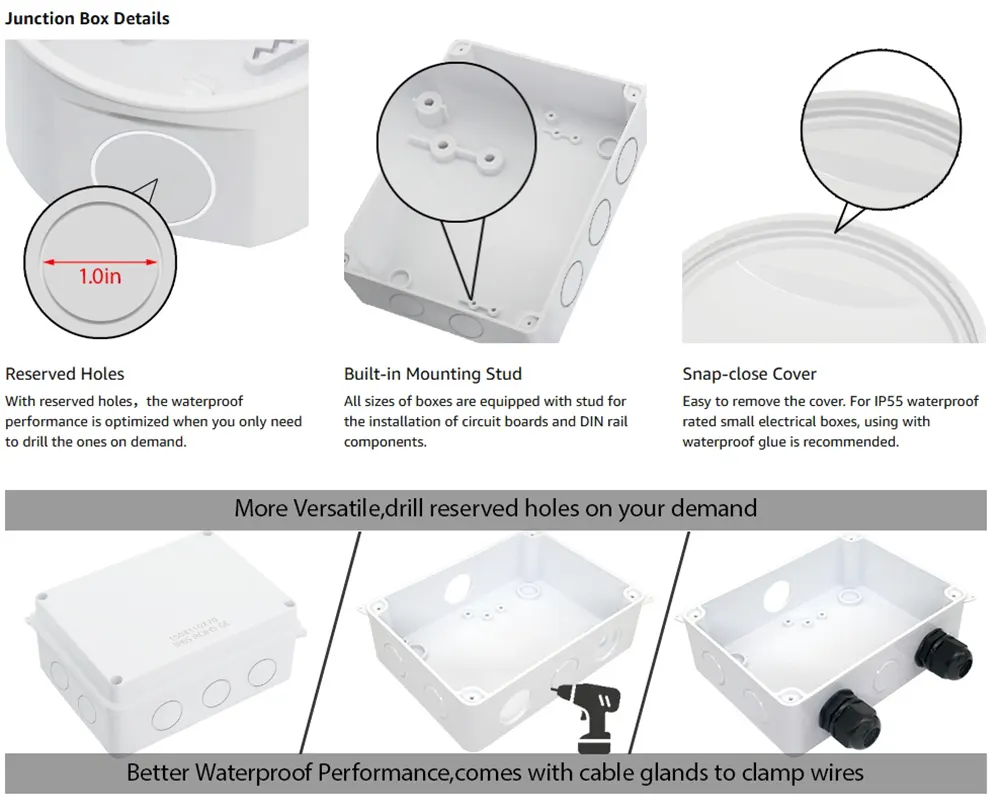

- Drillable for Custom Modifications
- UV and Chemical Resistant
- Free from Hazardous Substances
Technical Specifications
| Specification | Details |
|---|---|

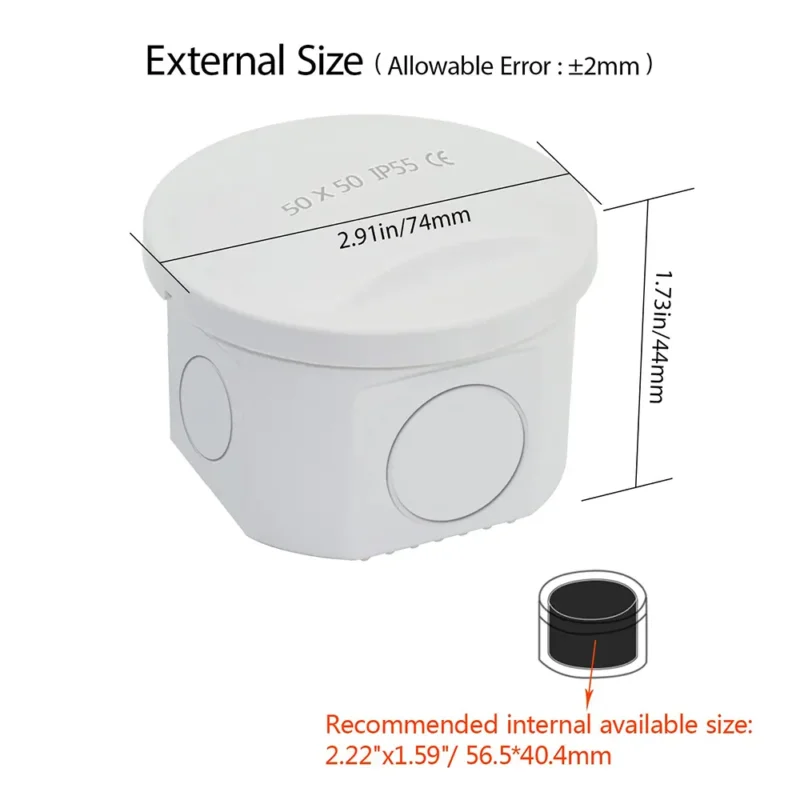

| External Dimensions | 2.91″ x 1.73″ (74mm x 44mm) |

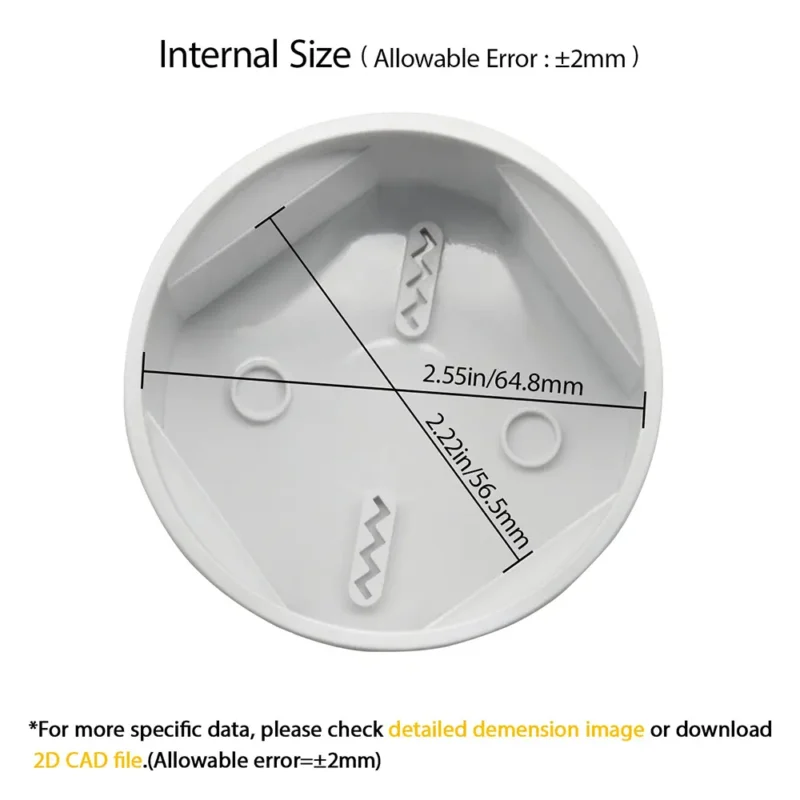

| Recommended Internal Space | 2.22″ x 1.59″ (56.5mm x 40.4mm) |
| Material | High-Quality ABS Plastic |
| Ingress Protection Rating | IP55 (Dust Protected and Water Jet Resistant) |
| Color | White |
| Certifications | CE, RoHS Compliant |
| Mounting Hardware Included | 2x Self-tapping Screws (M5*40), 2x Expansion Bolts |

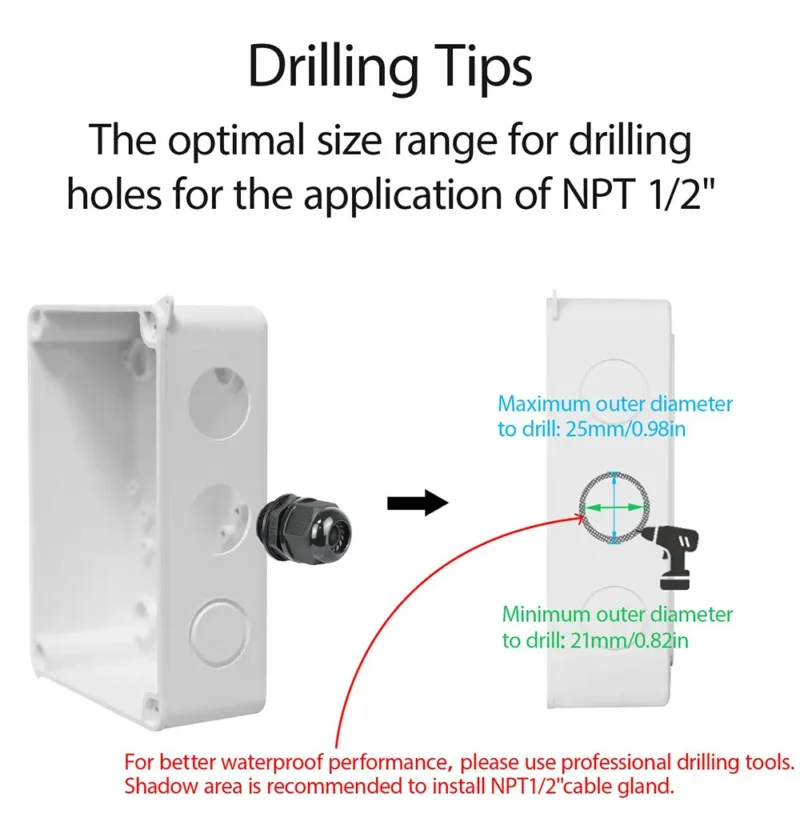

| Cable Management | 1x NPT1/2″ Cable Gland, 2x Rubber Stoppers |

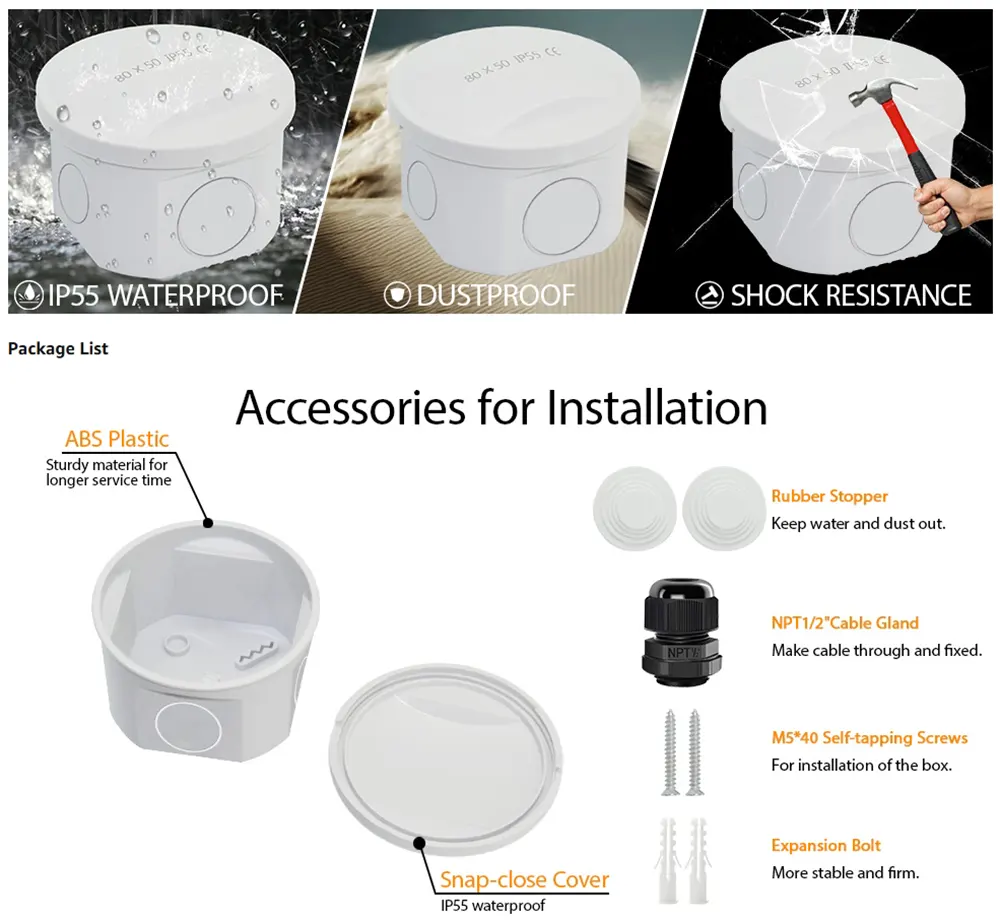

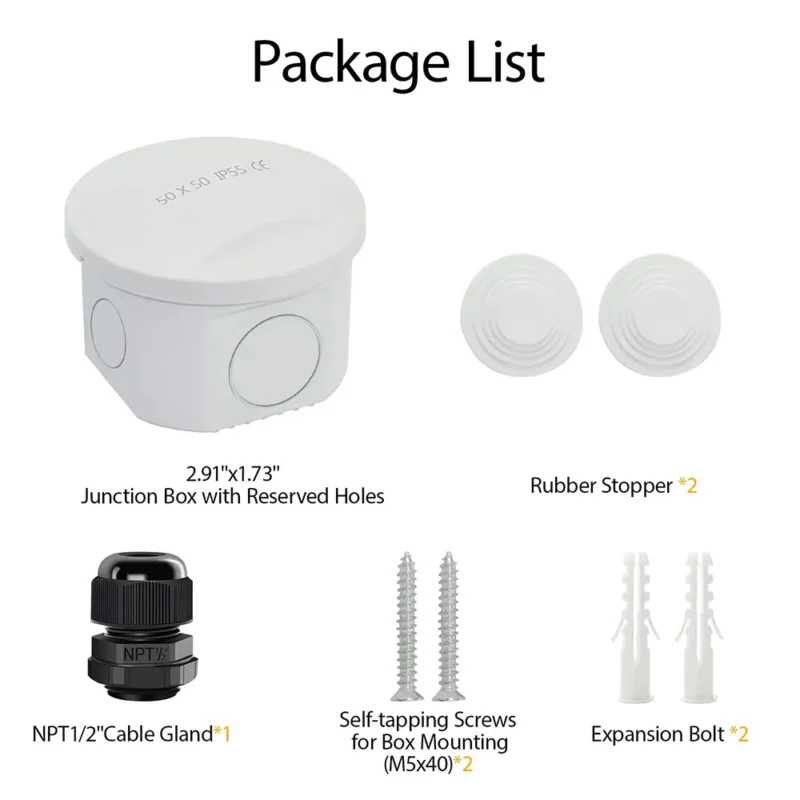

| Package Contents | 1x Junction Box, 2x Rubber Stoppers, 1x NPT1/2″ Cable Gland, 2x Self-tapping Screws, 2x Expansion Bolts |
Product Highlights
- Waterproof and Dustproof IP55 Rating
- Durable ABS Plastic Construction
- External Dimensions: 2.91″ x 1.73″ (74mm x 44mm)
- Internal Space: 2.22″ x 1.59″ (56.5mm x 40.4mm)
- CE and RoHS Certified
- Includes Mounting Hardware and Cable Glands
- UV and Chemical Resistant
- Excellent Electrical Insulation
- Easy to Install and Modify
Application Areas
The LeMotech IP55 Junction Box is designed for versatile use in multiple environments where protection from the elements is essential:- Outdoor Electrical Installations
- Industrial Control Systems
- Garden and Landscape Lighting
- Marine and Boat Electronics
- Security and Surveillance Systems
- Renewable Energy Systems (Solar/Wind)
- Automation and Robotics Projects
- Telecommunications Equipment
- DIY Electronics Projects
