Waterproof Dustproof IP65 ABS Plastic Junction Box – Universal Electric Project Enclosure Pale Gray | 6.2 x 3.54 x 2.3 inch (158 x 90 x 60 mm) – Product Overview
Ideal for both indoor and outdoor applications, this junction box offers superior resistance to moisture, UV exposure, and physical impacts. Weighing just 187g, the enclosure maintains a lightweight profile while delivering exceptional durability. The design enables easy operation and maintenance without cable cutting requirements, while the integrated screw mounting points (4mm thread diameter) ensure secure installations.
This versatile solution is perfect for protecting electrical connections in industrial automation, outdoor lighting systems, telecommunications infrastructure, security installations, and renewable energy projects. With its pale gray finish and optimized dimensions, it provides a practical yet aesthetically pleasing solution for organizing and safeguarding critical components against environmental challenges.
Key Features
- IP65 Waterproof Rating – Provides complete protection against low-pressure water jets and prevents moisture ingress

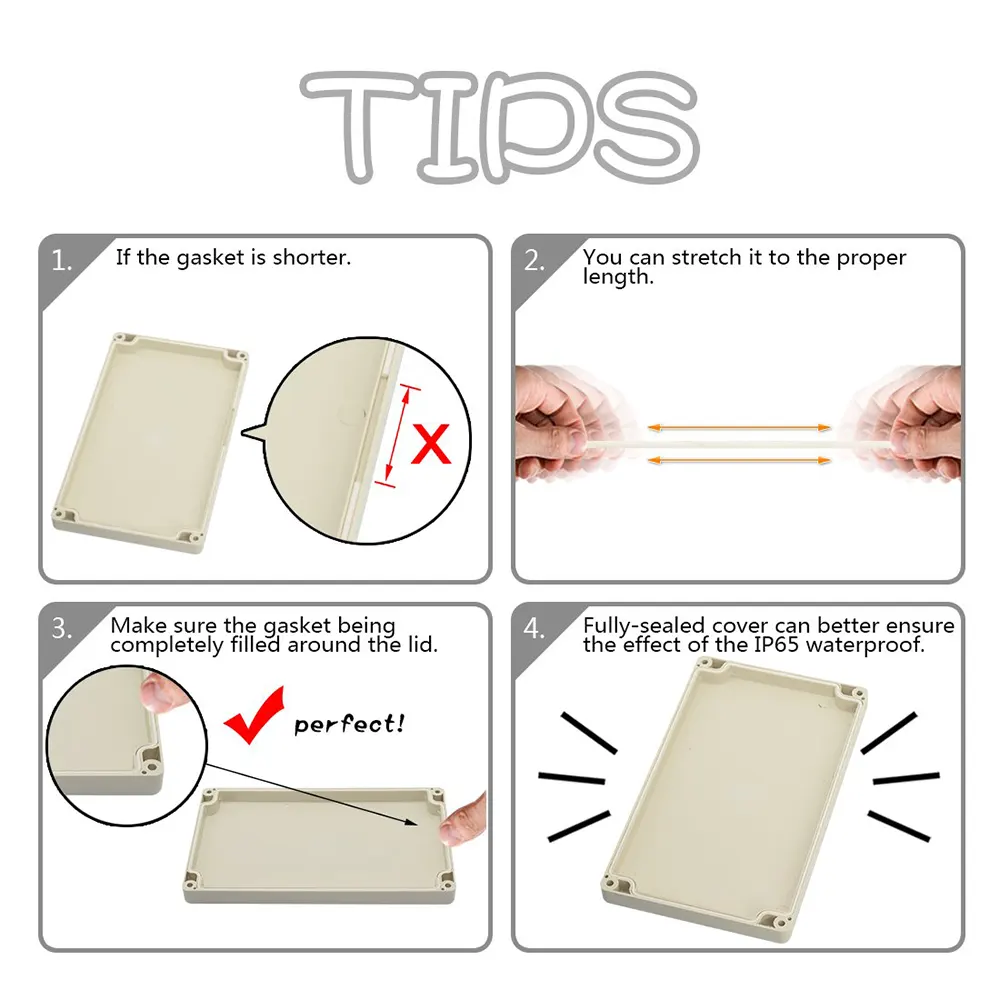

- Advanced Dustproof Design – Rubber gasket sealed enclosure prevents dust and dirt from damaging internal components
- UV & Weather Resistant – Special ABS formulation protects against sun damage and corrosion
- High Impact Resistance – Sturdy ABS plastic construction withstands physical shocks and vibrations
- Tool-Free Maintenance – Easy to open and service without cable cutting
- Universal Installation – Includes four 4mm threaded screws for secure mounting
- Lightweight & Durable – Only 187g with long-term reliability in harsh environments
- Optimal Dimensions – External: 158×90×60mm / Internal: 152×84×55mm (±2mm)
- Versatile Application – Suitable for both indoor and outdoor electrical and communication installations
Technical Specifications
| Specification | Details |
|---|---|
| Material | ABS Plastic + Rubber Gasket |
| Color | Pale Gray |
| Protection Rating | IP65 (Waterproof & Dustproof) |
| Net Weight | 187 grams |
| Screw Thread Diameter | 4mm (0.16″) |
| Wall Thickness | 3mm (0.12″) |

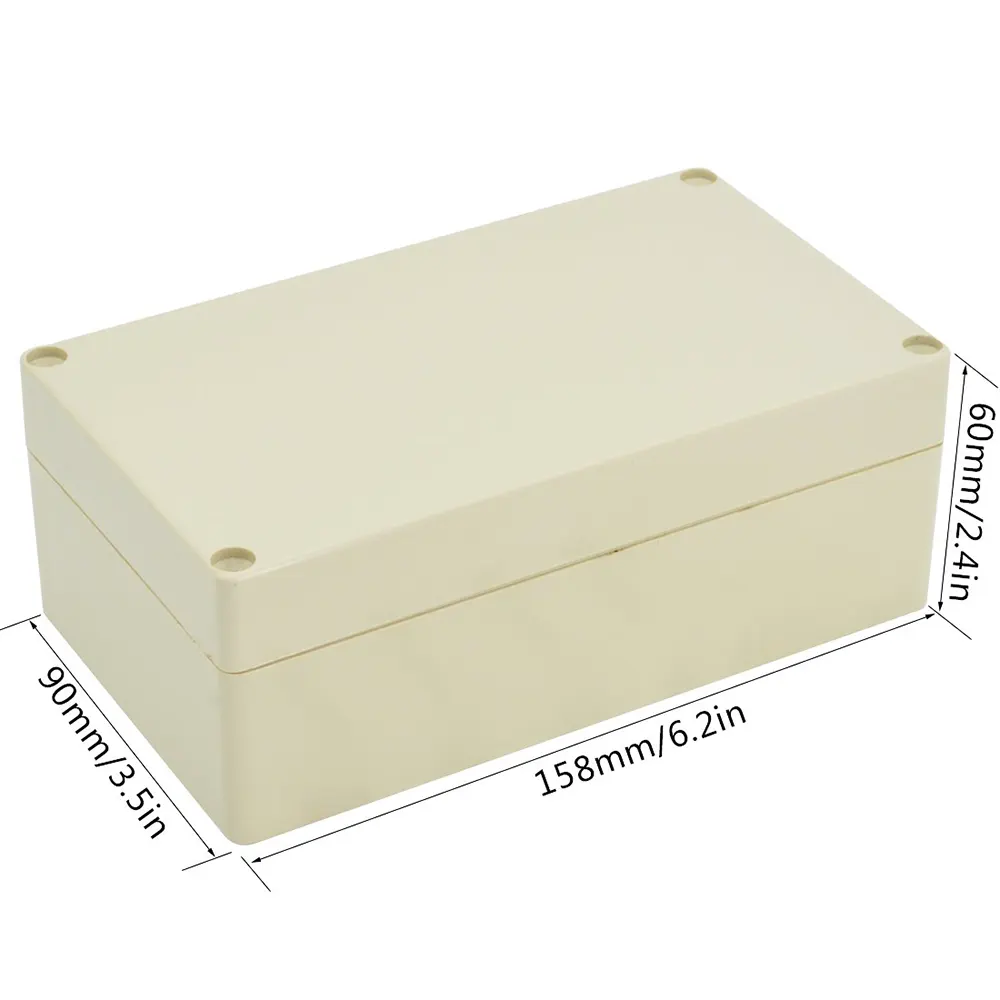

| External Dimensions (L×W×H) | 158 × 90 × 60 mm (6.2 × 3.54 × 2.3 inches) |

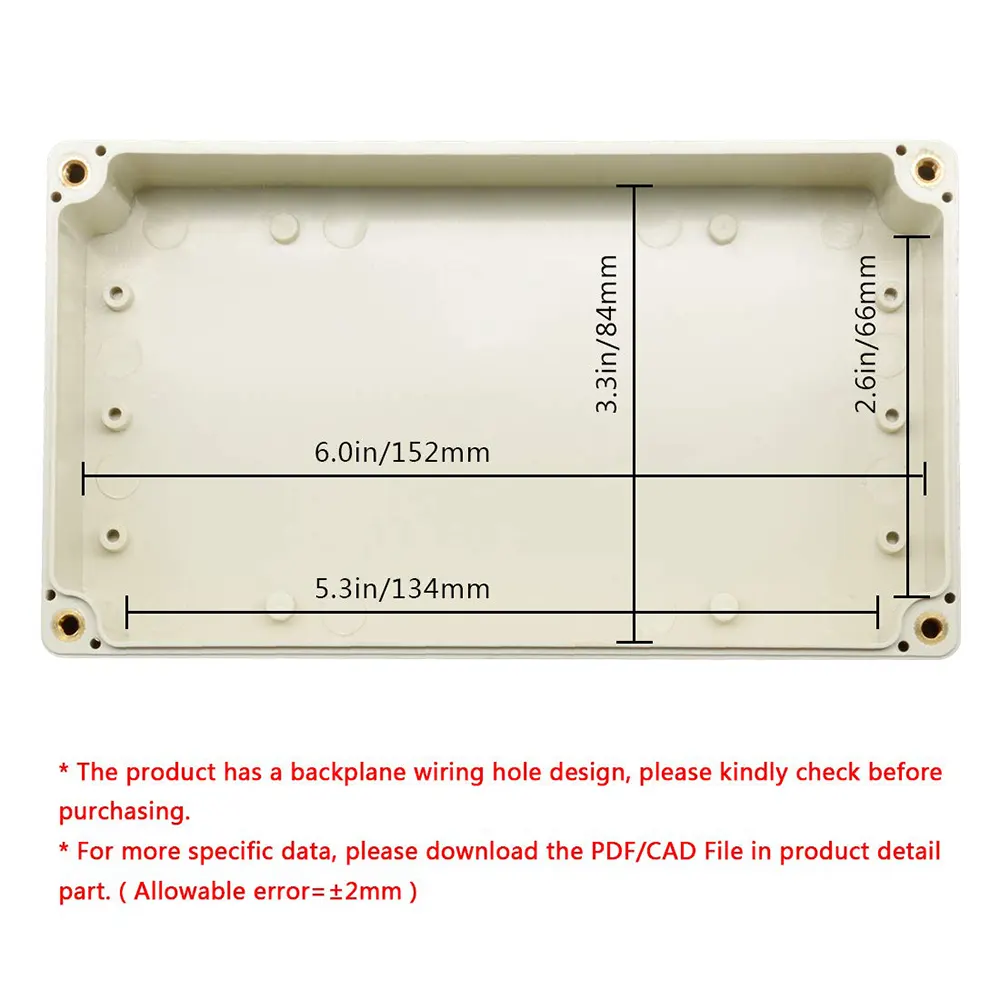

| Internal Dimensions (L×W×H) | 152 × 84 × 55 mm (6 × 3.3 × 2.2 inches) ±2mm |

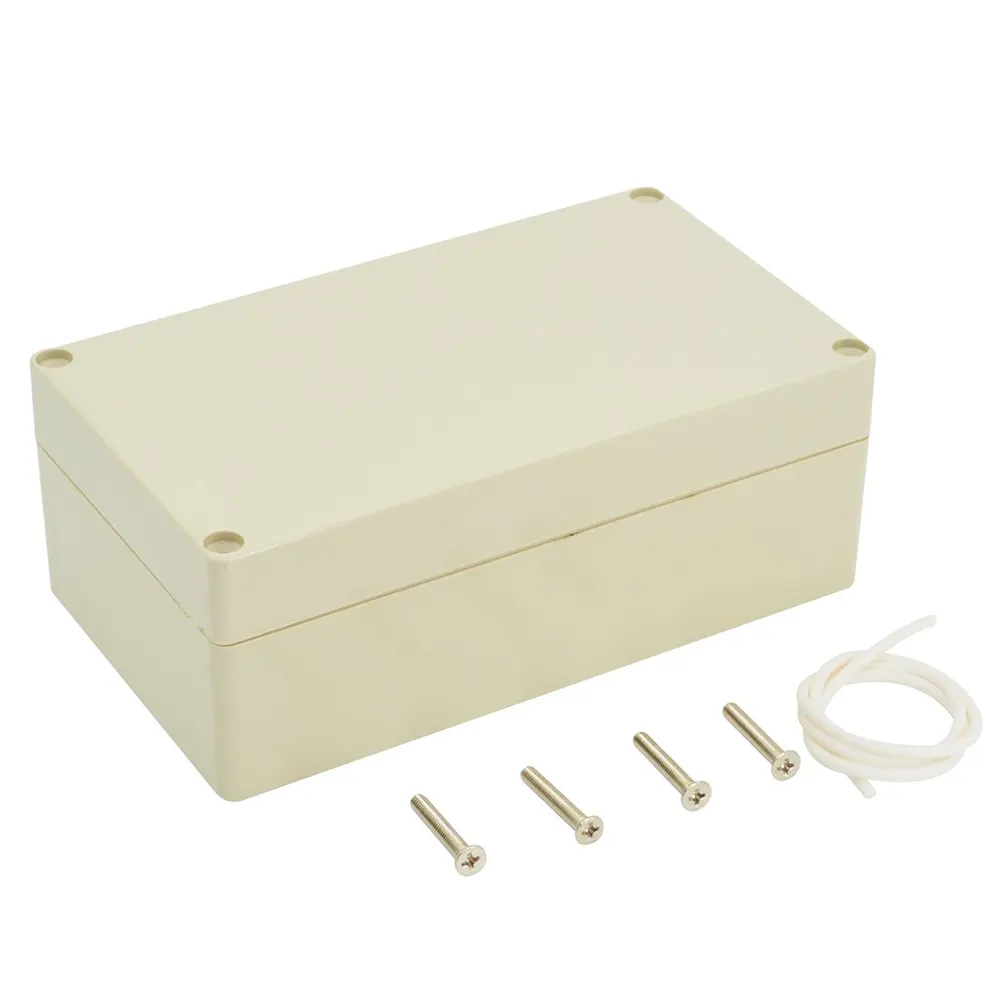

| Included Components | 1 × Junction Box, 4 × Mounting Screws |
| Environmental Resistance | Moisture Proof, Sunscreen, Anti-Corrosion |
Quick Specifications
- Material: ABS Plastic + Rubber
- Dimensions (External): 158mm × 90mm × 60mm
- Dimensions (Internal): 152mm × 84mm × 55mm (±2mm)
- Protection Rating: IP65 Waterproof & Dustproof
- Weight: 187g
- Color: Pale Gray
- Wall Thickness: 3mm
- Screw Thread: 4mm Diameter
- Included: Junction Box + 4 Mounting Screws

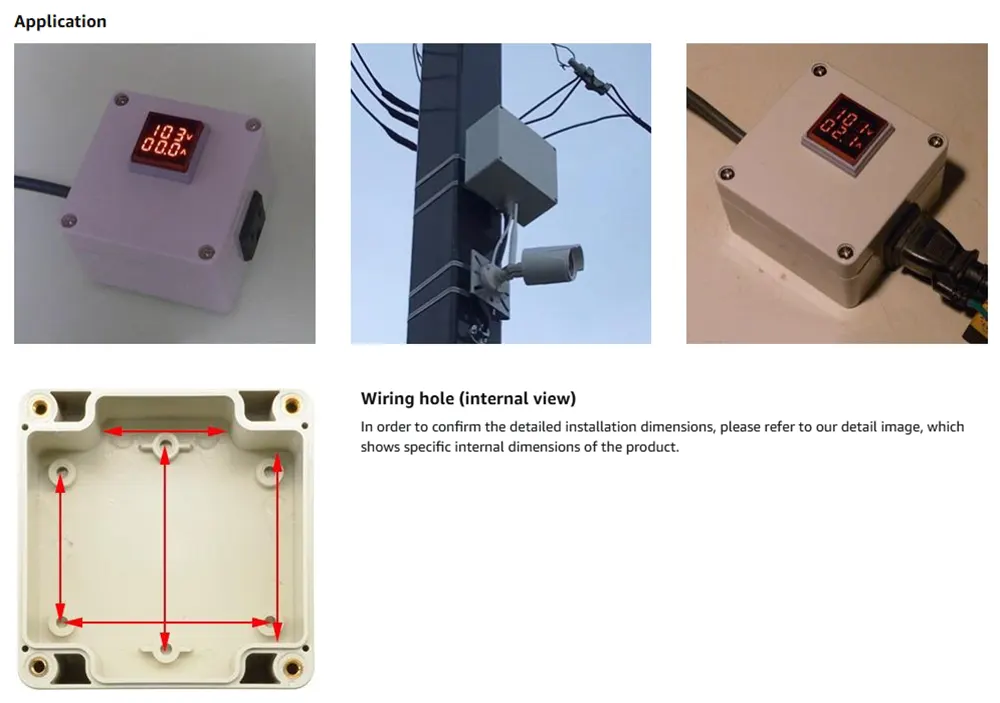

Applications
The Waterproof Dustproof IP65 ABS Plastic Junction Box is designed for diverse applications requiring reliable component protection:
- Outdoor Electrical Installations: Ideal for garden lighting, outdoor outlets, and landscape electrical systems
- Telecommunications: Protects network connections, fiber optic terminations, and communication equipment
- Industrial Automation: Safeguards control system connections in manufacturing environments
- Security Systems: Houses connections for CCTV cameras, alarm systems, and access control devices
- Renewable Energy: Protects solar panel connections, charge controllers, and monitoring equipment
- Marine & RV Applications: Resists corrosion in high-moisture environments
- Building Automation: Conceals and protects smart home system connections
- Utility Infrastructure: Suitable for meter boxes and distribution point enclosures
