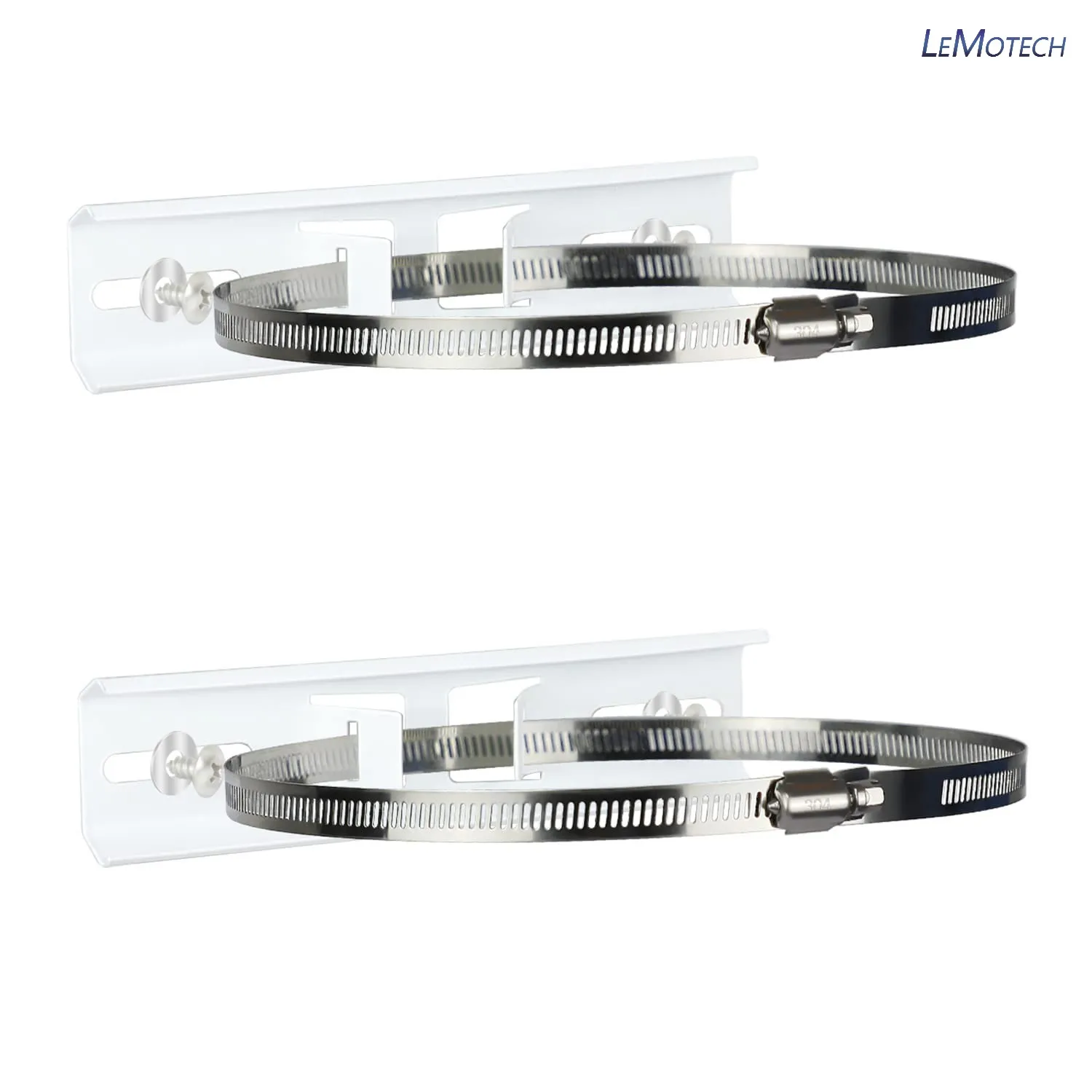

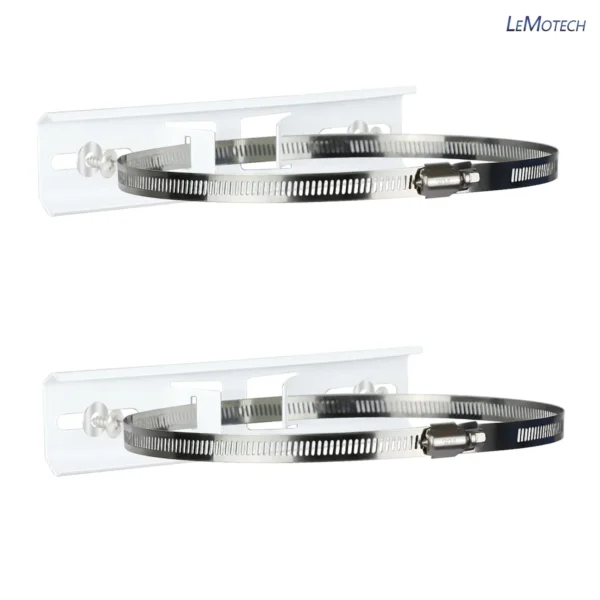

LeMotech Pole Mounting Kit for Junction Box – Adjustable Stainless Steel Bracket
Product Overview
The LeMotech Pole Mounting Kit is designed to securely mount for outdoor junction box, outdoor enclosure mounting kit, solar enclosures, or control cabinets to poles using a robust, adjustable stainless steel bracket. Made for field applications in diverse environments, this 304 stainless steel clamp kit supports poles measuring 50–200 mm (1.96–7.87 in) and carries up to 30 kg (66 lbs)—ideal for commercial signage, IoT hubs, lighting systems, and outdoor electrical setups.
Key Features
Adjustable Fit: Clamp range from 50 mm to 200 mm makes it compatible with many pole diameters;
Heavy Duty: Supports up to 66 lbs (30 kg) – suitable for robust junction boxes and enclosed electronics
Premium Material: 430-series stainless steel bracket with black baked-enamel finish—resists rust and corrosion

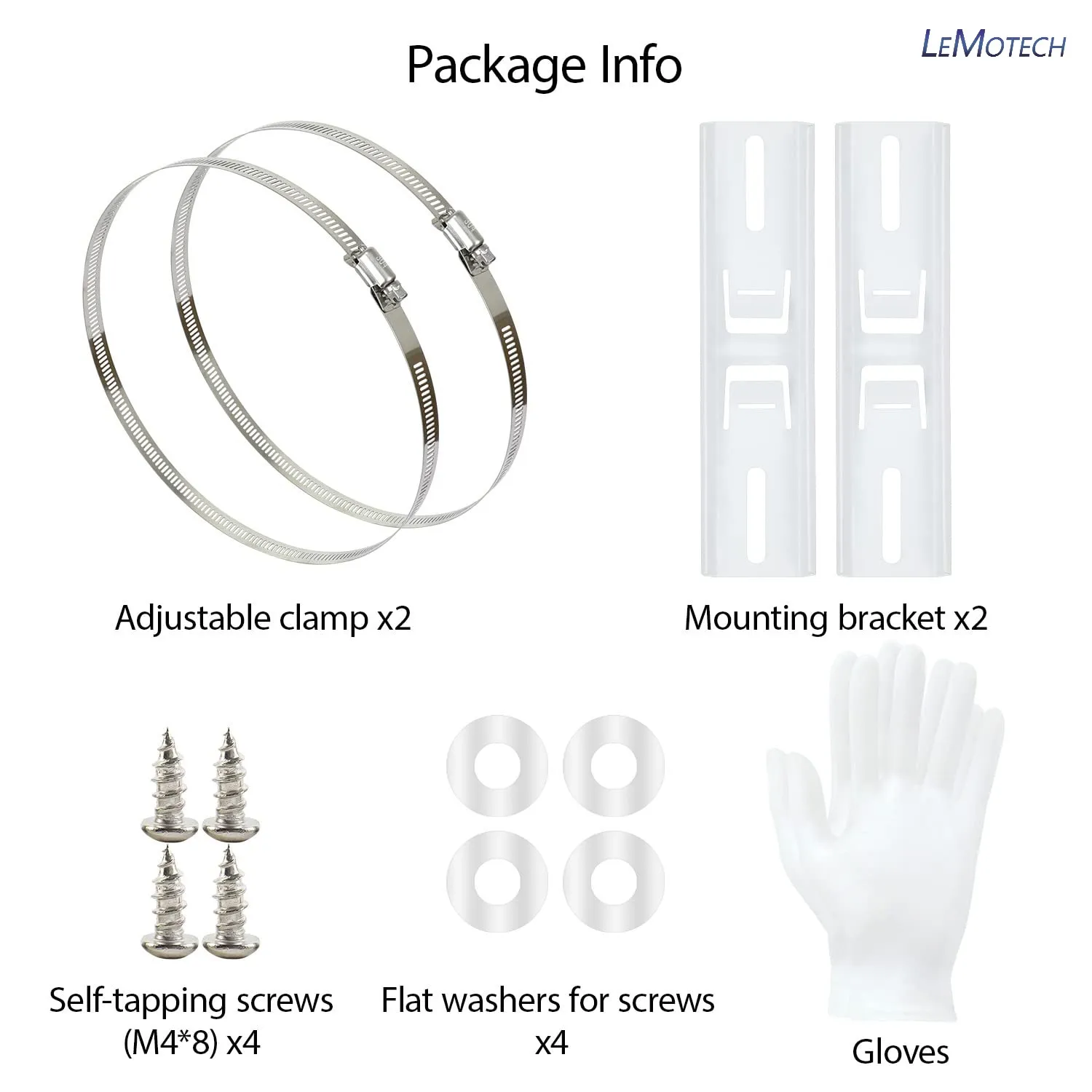

Secure Mounting: Includes M4 stainless steel screws, self-tapping hardware, washers, and protective gloves
Easy Installation: Rack-and-pinion clamp and bracket design allow quick assembly using a flat-head screwdriver
Pole Mounting Kit Technical Specifications
| Manufacturer | LeMotech |
|---|---|
| Certification | / |
| Is Discontinued By Manufacturer | No |
| Color | Silver |
| Finish Type | Stainless Steel |
| Material | Stainless Steel, Plastic |
| Mounting Type | Wall Mount |
| Item Package Quantity | Multiple Pieces |
| Style | Outdoor & Indoor |
| Batteries Included? | No |
| Shape | Circle |
| Cable Gland Included? | No |
304 stainless steel clamp
High intensity and high torque, ideal for both indoor and outdoor use.
Adjustable clips
Easy to adjust on pole from 50mm to 200mm with flathead screwdriver.
66lb weight capacity
Strong load-bearing capacity to protect interior equipments without shedding.

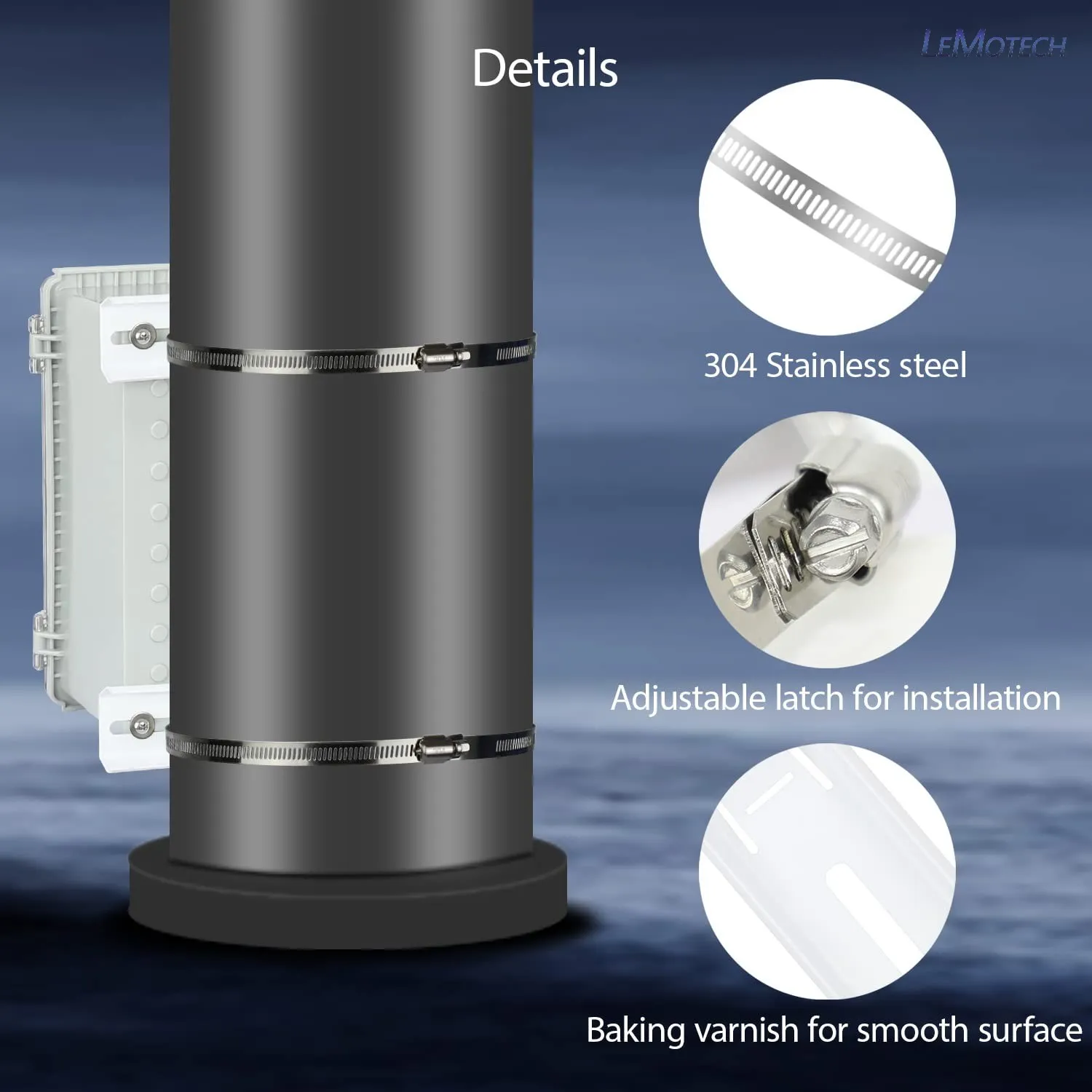

Details of Baking Varnished Bracket
Baking varnished
All brackets are baking varnished to reduce burr.

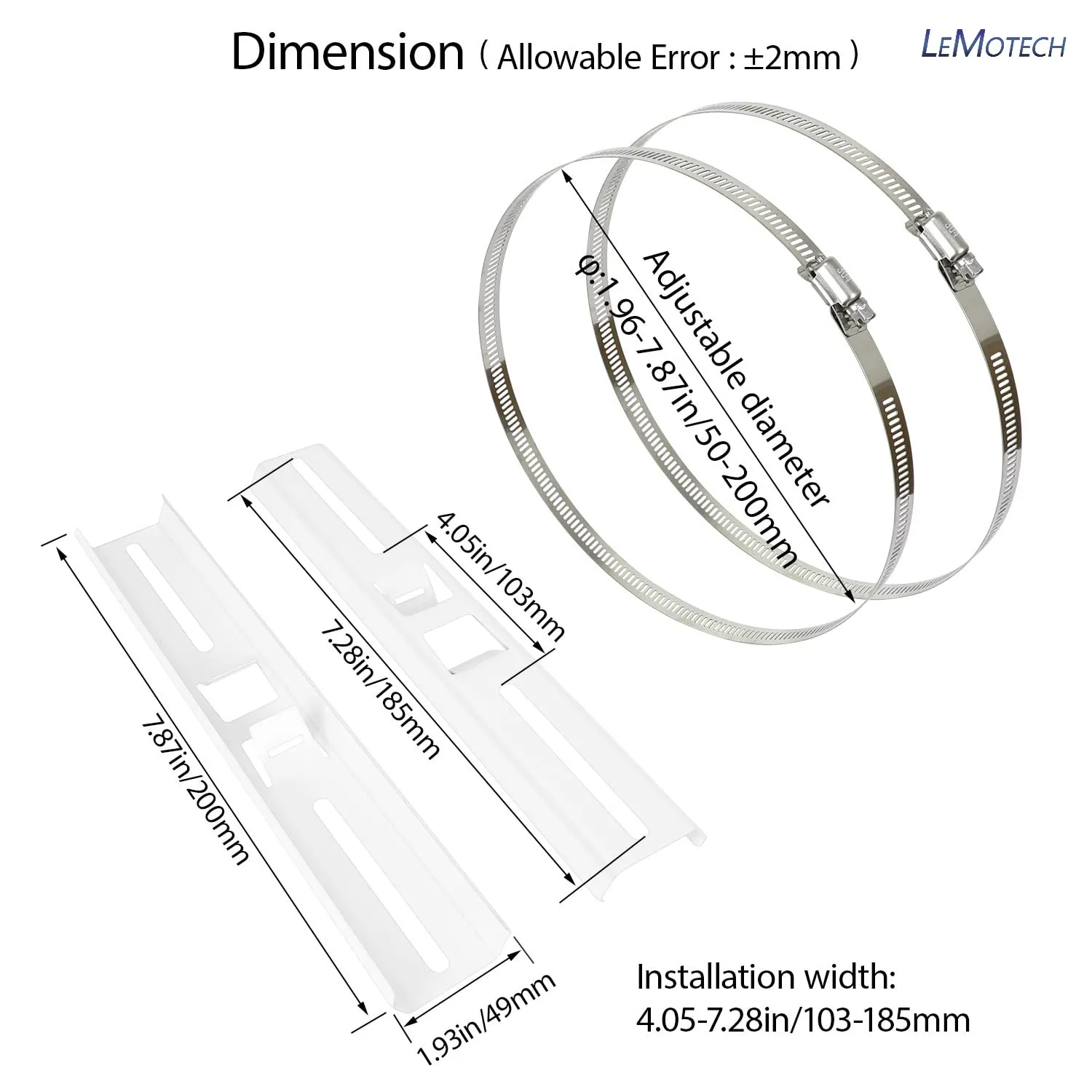

Flexible mounting range
200mm rail is suitable for 4.05-7.28in/103-185mm installation spacing.
430 stainless steel material
Made of 430 stainless steel rustproof and sturdy.
Ideal Use Cases
Mounting junction boxes on lamp posts, sign poles, or guardrails
Attaching outdoor CCTV, lighting control, or networking enclosures
Setting up IoT or solar project boxes in gardens, parks, or farmland
Securing field instruments on structural poles or towers
Providing a weather-resistant installation solution for ABS or polycarbonate boxes
Why Choose LeMotech Pole Mounting Kit?
This pole mount kit is purpose-built for field-ready robustness:
Dual stainless steel clamps grip poles securely without slipping
Durable finish protects against rust, peeling, and outdoor wear
Standardized hardware simplifies installation with minimal tools
Protects valves, electronics, and controllers from outdoor elements without drilling
