Product Introduction

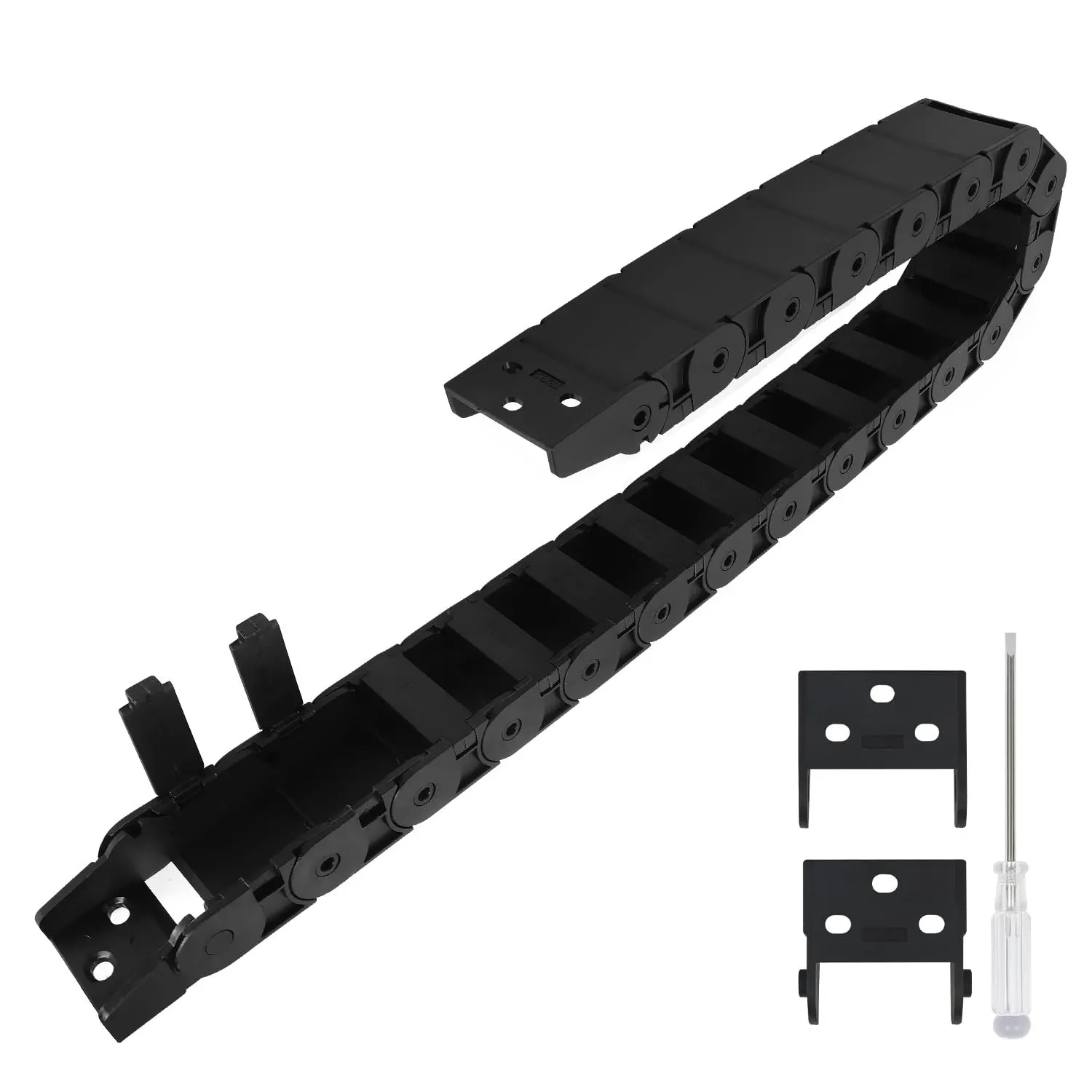

The LMioEtool Plastic Cable Wire Carrier Drag Chain is a high-quality semi-enclosed cable management solution designed for industrial automation environments. With internal dimensions of 18mm height × 37mm width and a standard 1-meter length, this black drag chain features a unique openable inner side design for easy cable installation and maintenance.
Engineered for superior cable protection, this drag chain boasts an R38 bending radius and is constructed from reinforced nylon PA66 material that offers exceptional durability, low-temperature resistance, wear resistance, and corrosion resistance. The semi-enclosed design provides optimal protection while allowing convenient access to cables when needed.
This versatile cable carrier is specially designed for applications involving reciprocating motion and high-speed movement. It effectively protects cables, tubing, and hoses in demanding industrial environments while reducing wear and preventing entanglement. The included end connectors ensure secure installation and seamless integration with machinery.
Each chain segment can be easily linked to others, allowing you to create custom lengths to suit your specific application requirements. When selecting the appropriate drag chain size, remember that the maximum cable diameter should not exceed 90% of the inner height, and cumulative cable width should not exceed 80% of the inner width.
Plastic Cable Wire Carrier Drag Chain | Semi-Enclosed Type with End Connectors | R38 Bending Radius | 18x37mm Inner Dimensions
Key Features
Superior Design
- Semi-enclosed type with openable inner side for easy access
- Smooth surface with attractive gloss finish
- R38 bending radius for optimal cable protection
Premium Material
- Constructed from reinforced nylon PA66
- Excellent wear and corrosion resistance
- Low-temperature resistant for diverse environments
Operational Advantages
- Low noise during operation
- High-speed movement capability
- Chain linking capability for custom lengths
Protective Benefits
- Prevents cable entanglement and reduces stress
- Protects against pinching during machine movement
- Extends cable and hose service life
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LMioEtool |
| Special Feature | Semi-Enclosed Type with End Connectors and Chain Linking Capability |
| Material | Reinforced Nylon PA66 |
| Style | Semi Enclosed Type |
| Color | Black |
| Bending Radius | R38 |
| Internal Dimensions (H×W) | 18mm × 37mm (Standard), other sizes available |
| Length | 1 Meter (3.28 Ft) |

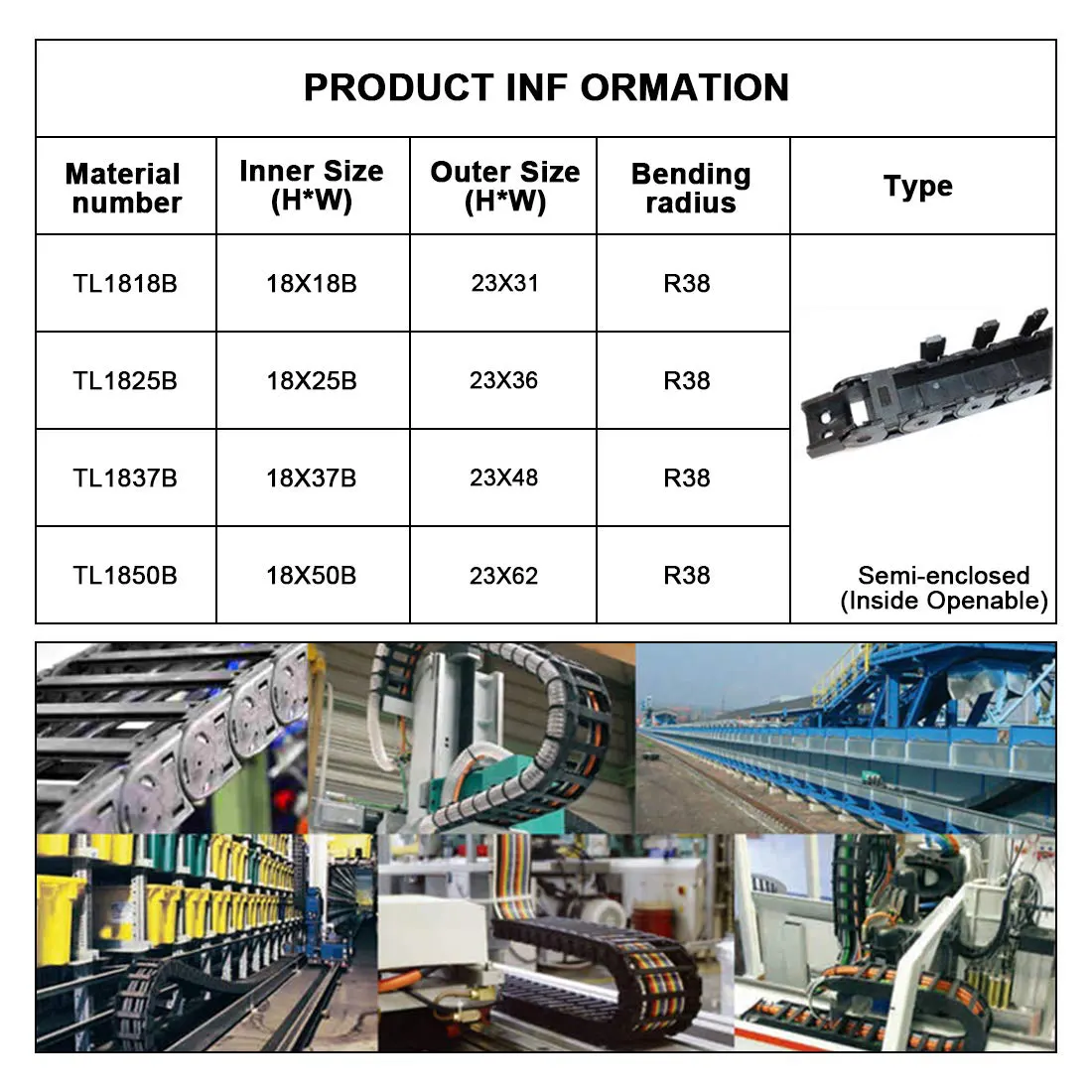

| Available Internal Sizes | 7×7mm, 10×10mm, 10×15mm, 10×20mm, 15×15mm, 15×20mm, 15×30mm, 15×40mm, 15×50mm, 18×18mm, 18×25mm, 18×37mm, 18×50mm |

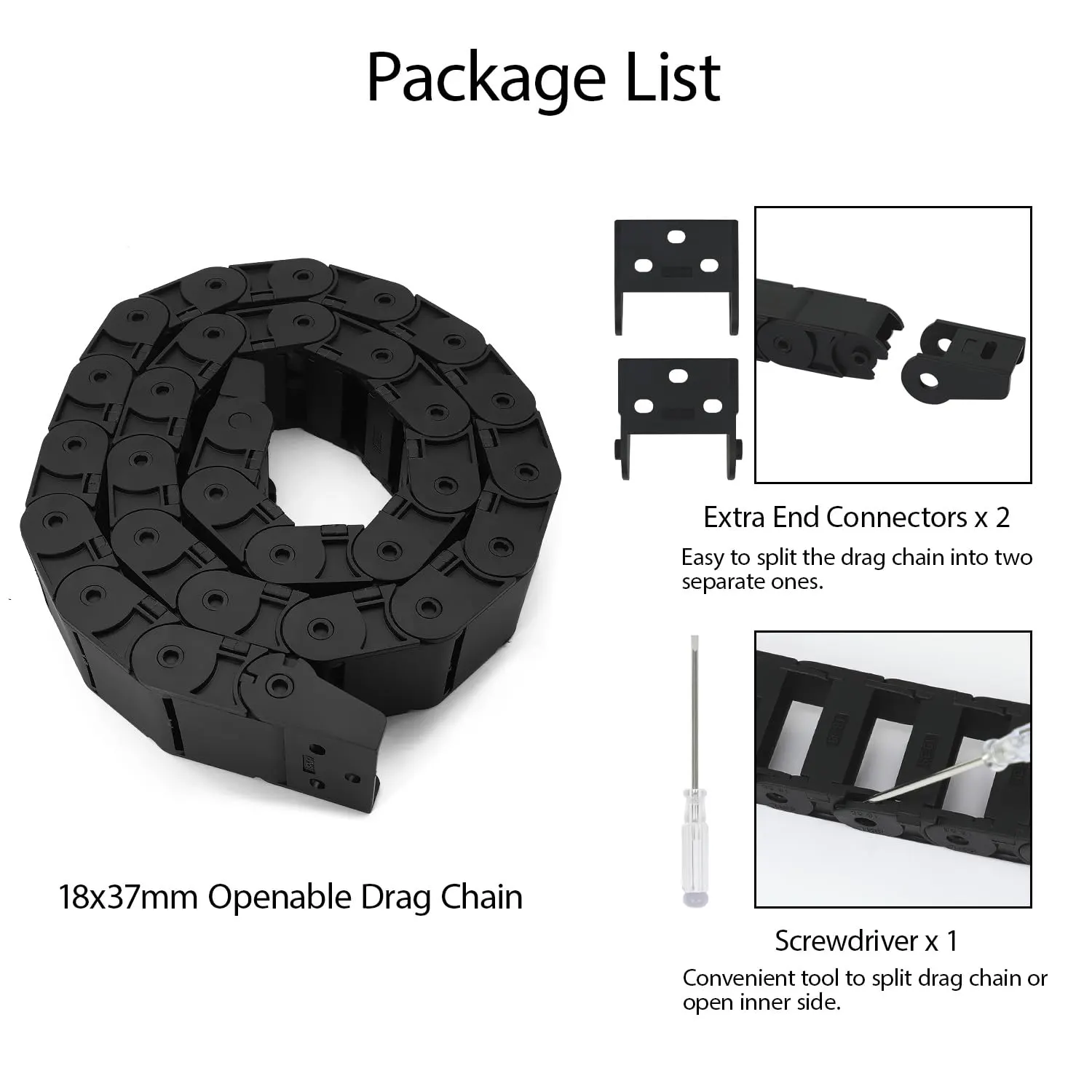

| Package Includes | 1 x Cable Drag Chain with End Connectors |

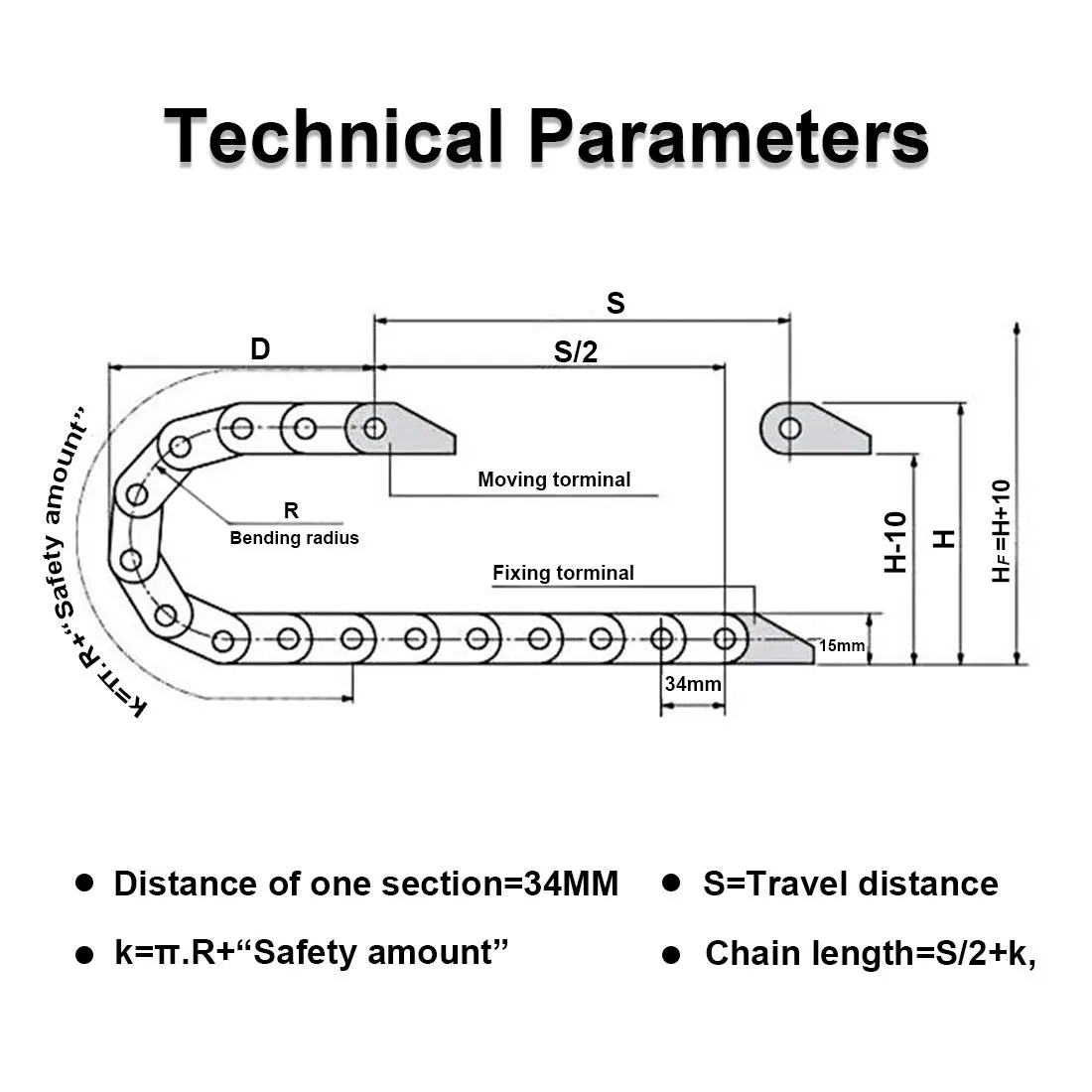

Key Parameters
Core Specifications
- Type: Semi Enclosed (Inner side openable)
- Bending Radius: R38
- Internal Size: 18mm(H) × 37mm(W)
- Length: 1M (3.28 Ft)
- Material: Reinforced Nylon PA66
Technical Parameters
- Color: Black
- Temperature Resistance: Low-temperature resistant
- Movement Type: Reciprocating motion compatible
- Max Cable Height: ≤90% of inner height
- Max Cable Width: ≤80% of inner width
Industrial Applications
Industrial Machinery
- CNC machine tools
- Glass machinery
- Injection molding machines
- Handling and transport machinery
Robotics & Automation
- Industrial robots
- Automated warehouses
- Automated welding systems
- Assembly line automation
Equipment & Systems
- Electronic equipment
- Painting and decorating equipment
- Plastic machinery
- Shoe-making machinery
- Chemical machinery
