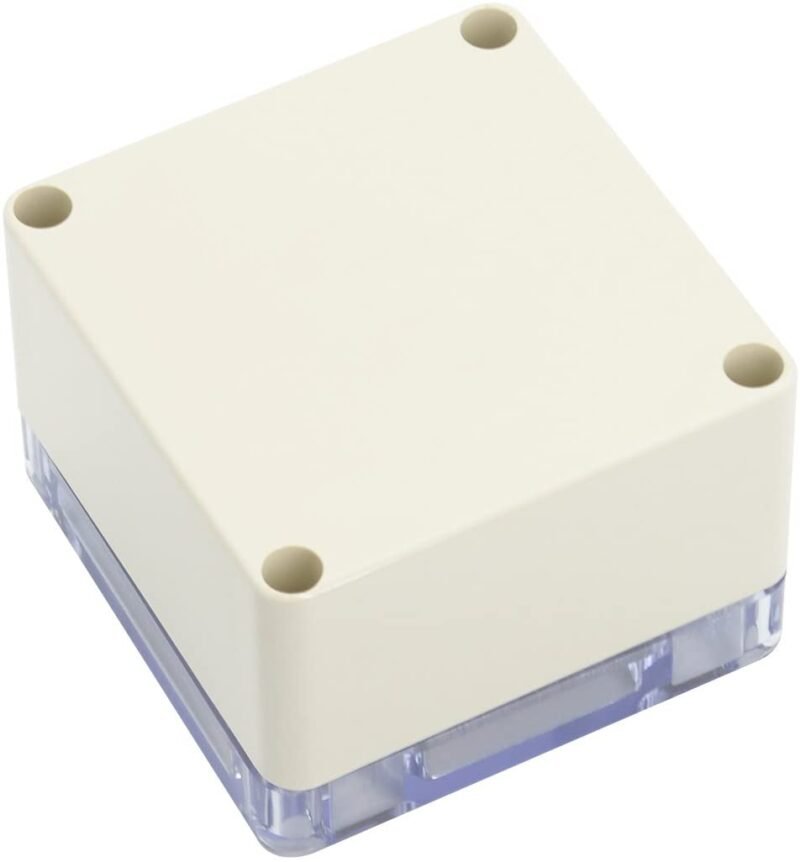

LeMotech ABS Plastic Junction Box with PC Transparent Clear Cover – Product Introduction
The LeMotech ABS Plastic Junction Box features a durable light gray ABS body and a PC transparent clear cover, providing superior protection for electrical components. With an IP65 waterproof rating certified by CE and ROHS, this enclosure guarantees complete dust resistance and protection against low-pressure water jets. Measuring 6.2″x3.5″x2.3″ (158x90x60mm) externally and 6″x3.3″x2″ (152x84x50mm) internally, it offers ample space for circuitry while maintaining a compact footprint. The 3mm-thick walls and 4mm screw threads ensure structural integrity, and installation is simplified with included hardware – no cable cutting required.
Ideal for diverse environments, this junction box excels in outdoor projects where exposure to weather elements is unavoidable. Its transparent cover enables visual inspection of components without disassembly, saving maintenance time. Common applications include garden lighting systems, irrigation controllers, DIY electronics projects, solar power installations, and industrial sensor housings. The shock-resistant ABS construction combined with the sealing rubber gasket delivers long-term reliability in harsh conditions, protecting sensitive electronics from dust, moisture, and physical impacts while enabling easy access for repairs or modifications.
Key Features
- IP65 Waterproof Certification – Blocks water jets and ensures internal components remain dry
- Advanced Dustproof Design – Rubber gasket seal prevents dust/dirt ingress
- Impact-Resistant ABS Construction – ABS plastic body withstands physical shocks and vibrations
- Visual Monitoring – PC transparent cover allows component visibility without opening
- Tool-Free Maintenance – Easy-access design eliminates cable cutting during repairs
- Corrosion-Resistant – Suitable for humid and corrosive environments
- Secure Fastening System – 4mm screw threads ensure tight seal and cover stability
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Junction Box |
| Protection Rating | IP65 (Certified: CE, ROHS) |
| Material | ABS Body, PC Cover |
| External Dimensions | 6.2 x 3.5 x 2.3 inch (158 x 90 x 60 mm) |
| Internal Dimensions | 6 x 3.3 x 2 inch (152 x 84 x 50 mm) ±2mm |
| Wall Thickness | 0.12 inch (3mm) |
| Screw Thread Diameter | 4mm (0.16 inch) |
| Net Weight | 187 grams |
| Color | Light Gray (Box), Transparent (Cover) |

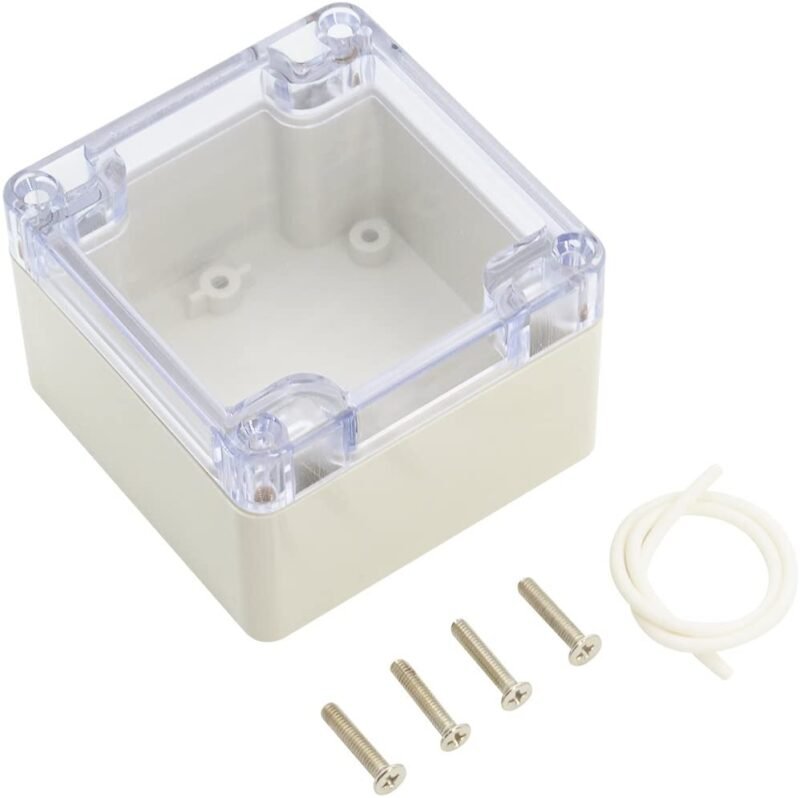

| Package Contents | 1x Junction Box, 4x Screws, 1x Rubber Grommet |
Key Parameters
- Waterproof Standard: IP65 Certified
- Body Material: ABS Plastic
- Cover Material: PC Transparent
- External Size: 158mm × 90mm × 60mm
- Internal Size: 152mm × 84mm × 50mm
- Wall Thickness: 3mm
- Screw Thread: 4mm Diameter
- Weight: 187g
- Inclusions: Junction Box + Screws + Rubber Grommet
Applications
This versatile junction box is engineered for demanding environments including:
- Outdoor electrical installations and weatherproof enclosures
- DIY electronics projects and prototype housing
- Garden/landscape lighting systems and irrigation controllers
- Solar power components and renewable energy systems
- Industrial sensor protection and automation equipment
- Network connectivity boxes and telecommunications
- Marine/RV electrical systems and automotive applications
