NPT Spiral Cable Gland IP68 Waterproof Relief Nylon Joint with Gaskets for Wire Thread 1″ 1/2″ 1/4″ 3/4″ 3/8″ with black & grey colour options
Product Overview
The LeMotech NPT Spiral Cable Gland is an excellent solution for your wiring needs.
First of all, it offers flexible, waterproof, and reliable strain relief. Moreover, it is crafted from durable nylon (PA66) and features a spiral deflector along with an EPDM gasket. As a result, it can create a tight seal around cables ranging from 6mm to 18mm in diameter. Consequently, it is an ideal choice for use with junction boxes, electrical enclosures, and control panels.

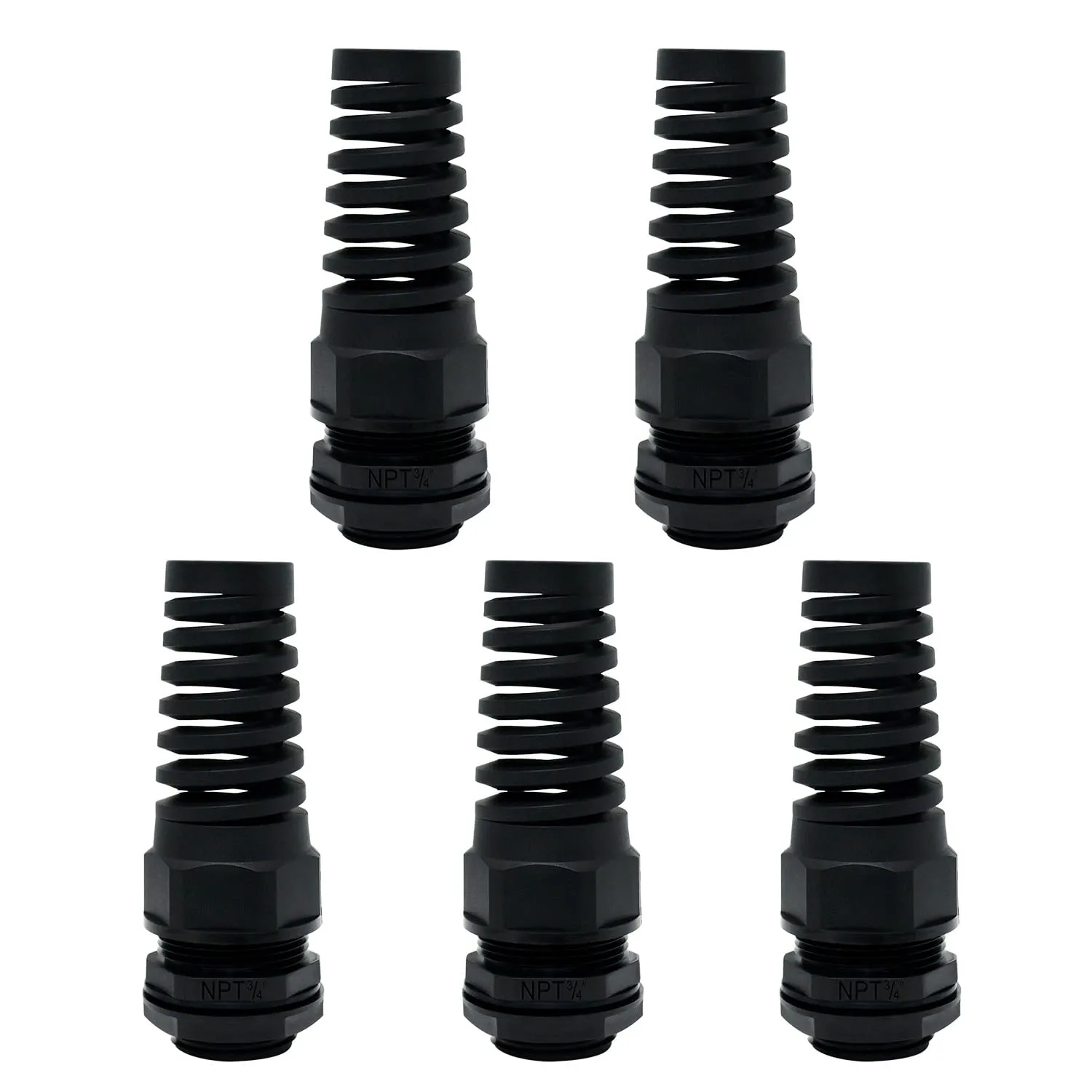

This single threaded cable gland is sold by size—available in thread sizes from 1/4″ to 1″, and packs of 2, 5, or 10—making it ideal when you need flexible installation or replacement parts.

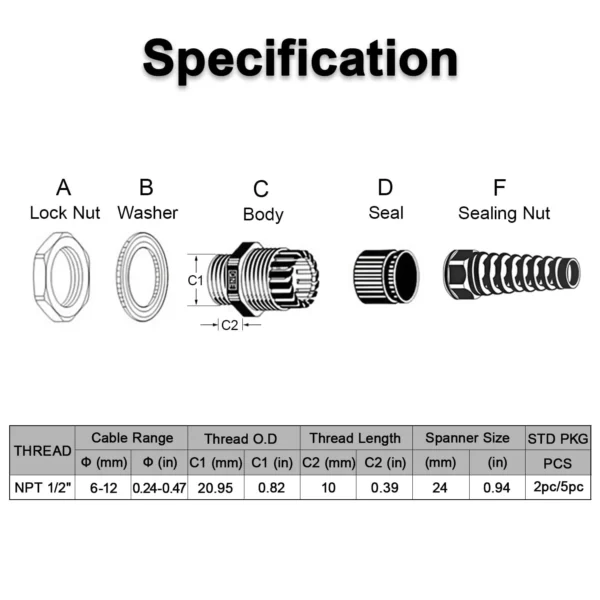

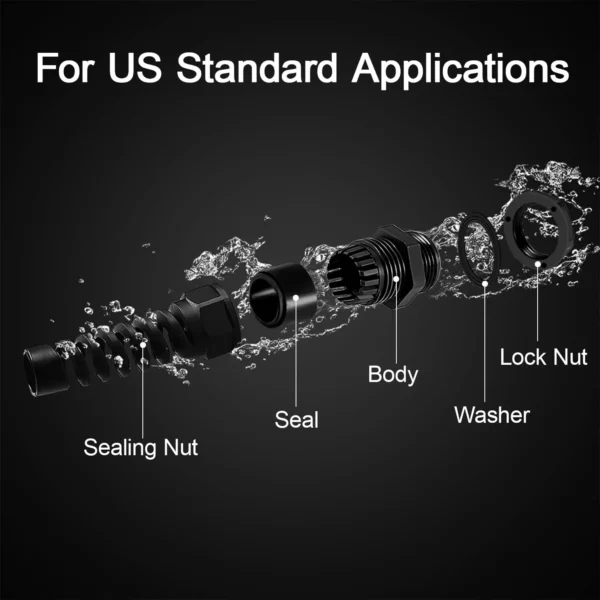

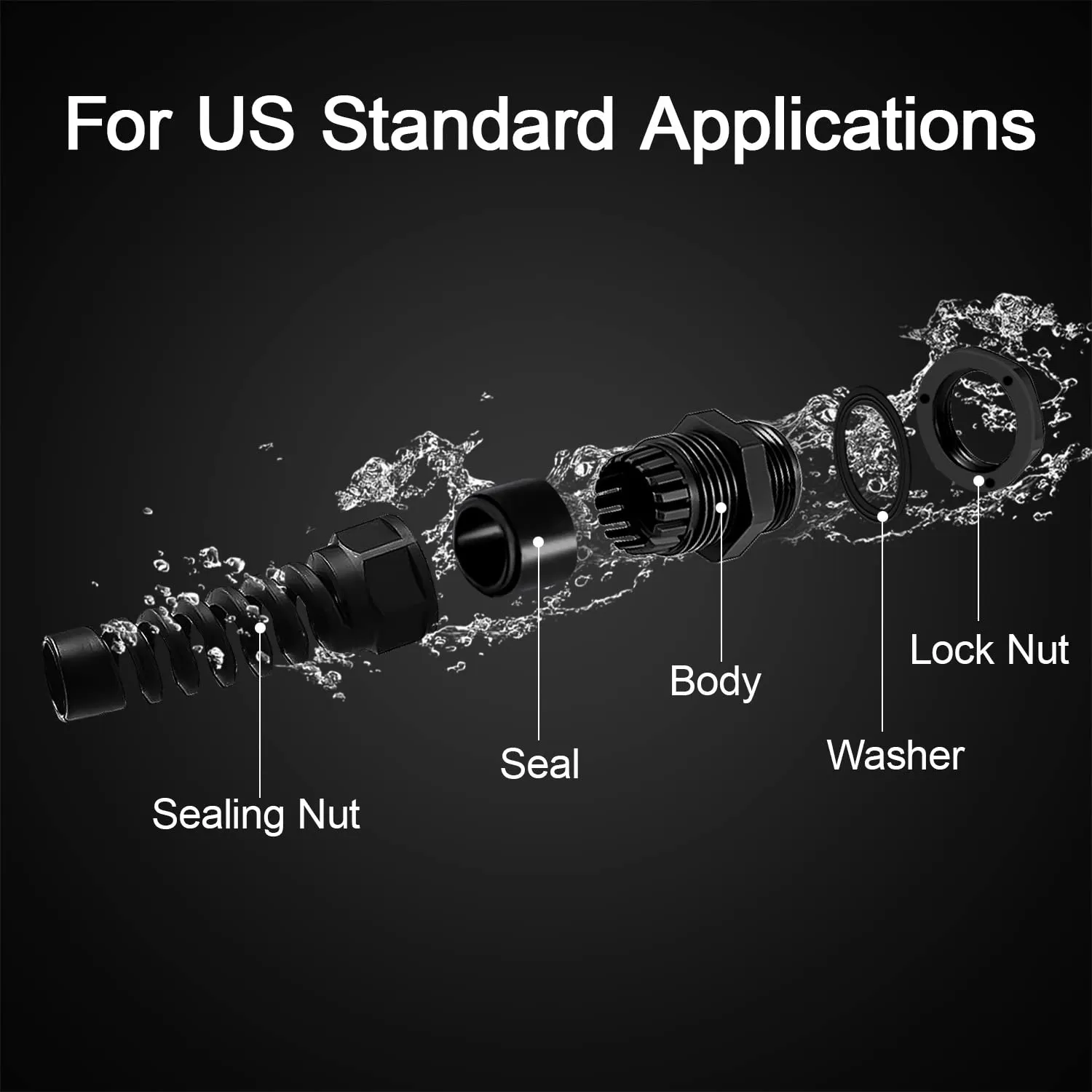

NPT Spiral Cable Gland Structure
Each cable gland includes:
A. Lock Nut – for secure mounting to enclosures
B. Washer – enhances waterproof seal
C. Threaded Body – NPT male thread for fast installation
D. Inner Seal (EPDM) – compresses around cable for IP68 seal
F. Spiral Sealing Nut – offers flexible strain relief to protect cable exit points

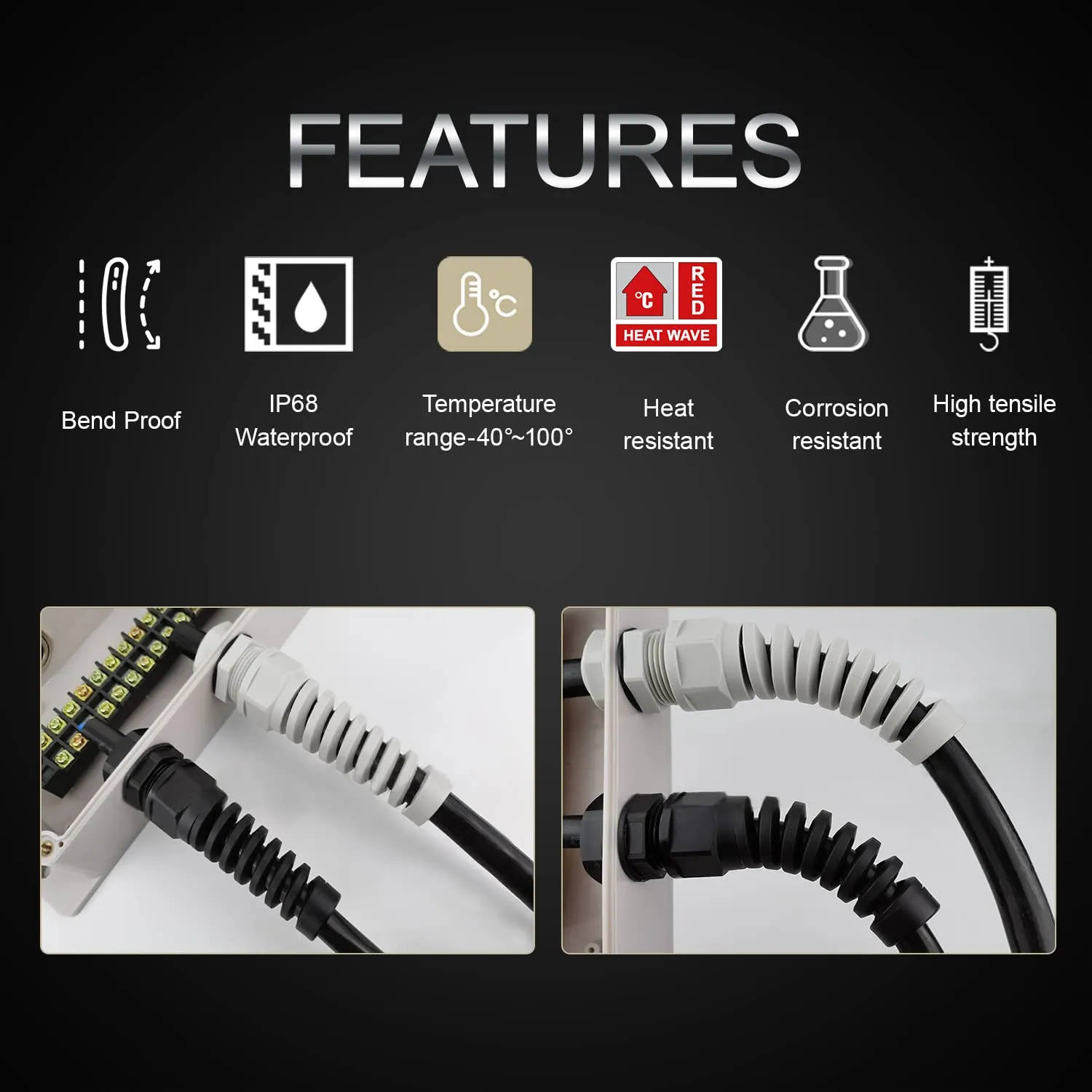

Key Features
IP68 Waterproof Rated – Fully sealed design blocks water, dust, and oil
Spiral Strain Relief – Prevents sharp bends or damage to cable jackets
Wide Temperature Resistance – Operates from -40°C to +100°C
Corrosion & Heat Resistant – Nylon PA66 + EPDM gasket for harsh environments
High Tensile Strength – Ideal for high-vibration, mobile, or outdoor setups

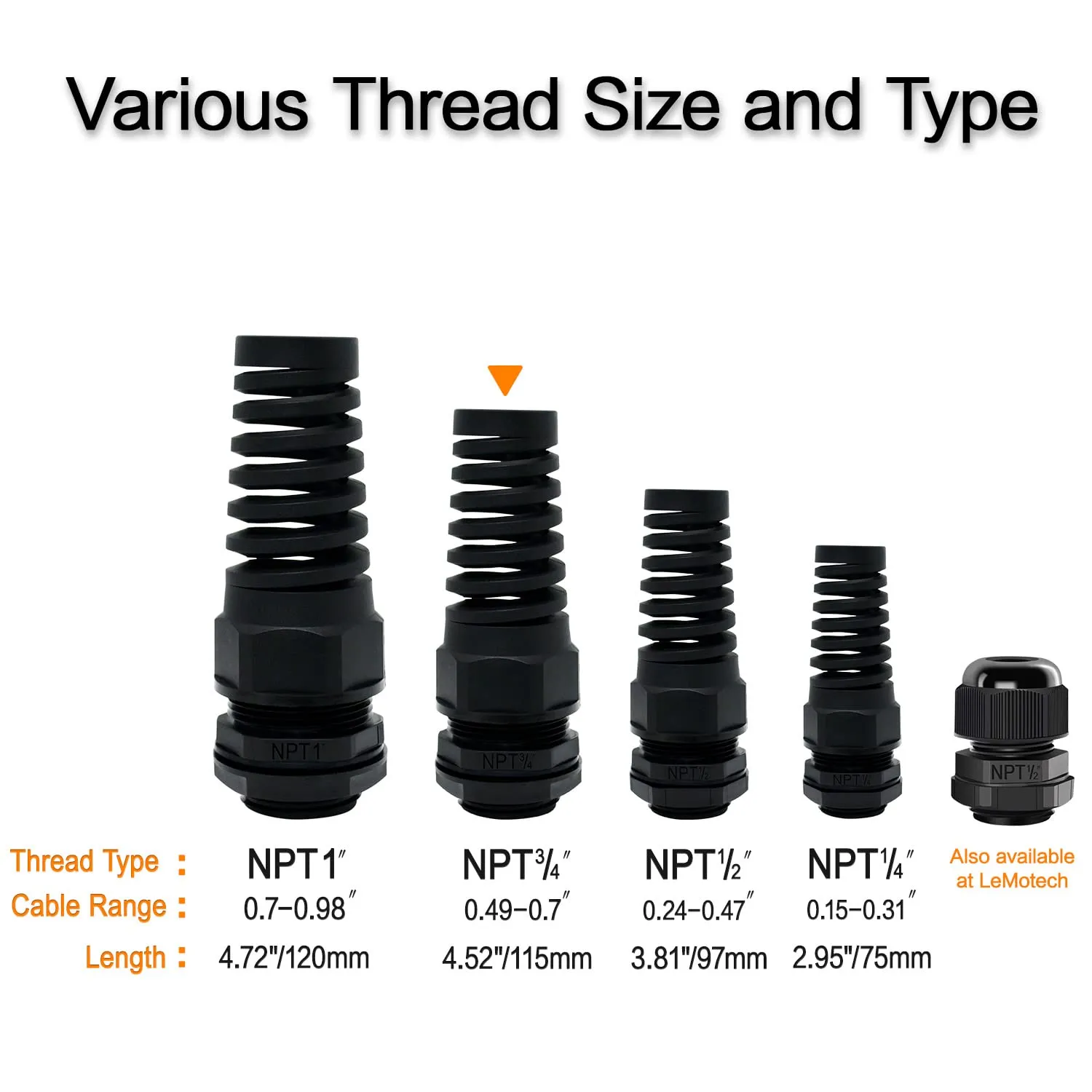

Size Options & Technical Specifications
| Thread Size | Cable Range (mm) | Thread O.D. (mm) | Thread Length (mm) | Spanner Size (mm) | Standard Pack |
|---|---|---|---|---|---|
| NPT 1/4″ | 4–8 | 13.16 | 8.5 | 19 | 10 pcs |
| NPT 1/2″ | 6–12 | 20.95 | 10 | 24 | 2 / 5 pcs |
| NPT 3/4″ | 12.5–18 | 26.44 | 15 | 33 | 2 / 5 pcs |
| NPT 1″ | 18–25 | 33.24 | 17 | 41 | 2 / 5 pcs |
Thread type: NPT | Material: Nylon PA66 + EPDM | Color: Black or Gray
Common Applications
Outdoor junction boxes and cabinets
Junction box cable entries
Solar equipment and LED power cables
Marine, RV, and automation installations
Control panel wire management
Why Choose This NPT Spiral Cable Gland?
Ensures better strain relief compared to straight cable glands
Swivel spiral protects cable near enclosure entry
Replaces or enhances existing gland fittings
Ideal for field repairs—no drilling needed
Purchase Options
Available in packs of 2, 5, or 10 units per size on Amazon. Besides, each comes with a sealing gasket and lock nut.
Why Choose LeMotech?
LeMotech has earned the trust of electrical installers, OEMs, and industrial engineers across the globe. In fact, its reputation is well – deserved. Specifically, our spiral cable glands stand out as they seamlessly combine long – term protection with practical strain relief. Therefore, they are the perfect fit for harsh – use environments where equipment failure is simply not an acceptable outcome.
Buy on Amazon
Purchase direct: [NPT Spiral Cable Gland on Amazon]
For Bulk order inquiries: LMioEtool@lemotech.com.cn
