ABS Junction Box IP65 Waterproof and Dustproof – Universal Electrical Project Enclosure with Fixed Ear – 100x68x50mm (Pack of 2)
Product Overview
The ABS Junction Box with IP65 waterproof and dustproof rating is engineered to provide superior protection for your electrical components in demanding environments. Measuring 100x68x50mm (3.94″x2.68″x1.97″), this robust enclosure features a durable ABS plastic construction with fixed mounting ears for secure installation.
With its IP65 rating, this junction box delivers exceptional waterproof and dustproof performance, making it suitable for both indoor and outdoor applications. The removable cover features an elastic rubber grommet that creates a reliable seal against moisture and contaminants, ensuring your electrical connections remain protected even in challenging conditions.
This versatile enclosure is designed with practical features including built-in brass nuts for repeatable installations and a sturdy ABS plastic construction that withstands years of service. The universal design accommodates a wide range of applications from industrial settings to residential projects where reliable protection of electrical components is paramount.
Each package contains two complete junction box kits, including rubber grommets and installation screws, providing excellent value for multiple installation points. Whether you’re protecting wiring connections in a manufacturing facility, outdoor lighting installation, or marine application, this junction box delivers reliable protection and peace of mind.
Key Features
- IP65 Rated Protection – Superior waterproof and dustproof performance protects electrical components against rain, dust, and low-pressure water jets
- Durable ABS Construction – Sturdy ABS plastic housing ensures long-term reliability and resistance to impact, corrosion, and UV degradation

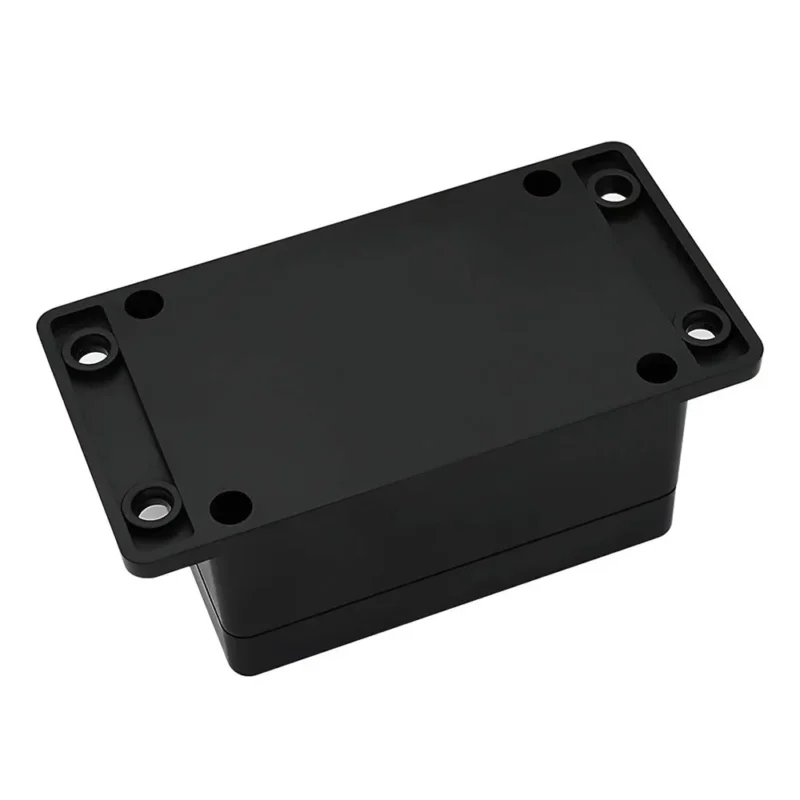

- Fixed Mounting Ears – Integrated mounting tabs simplify installation and provide secure attachment to surfaces
- Sealed Design – Removable cover with elastic rubber grommet creates a watertight seal for optimal protection
- Reusable Installation – Built-in brass nuts allow for repeated access and maintenance without compromising integrity
- Universal Application – Suitable for indoor and outdoor use in diverse environments and industries

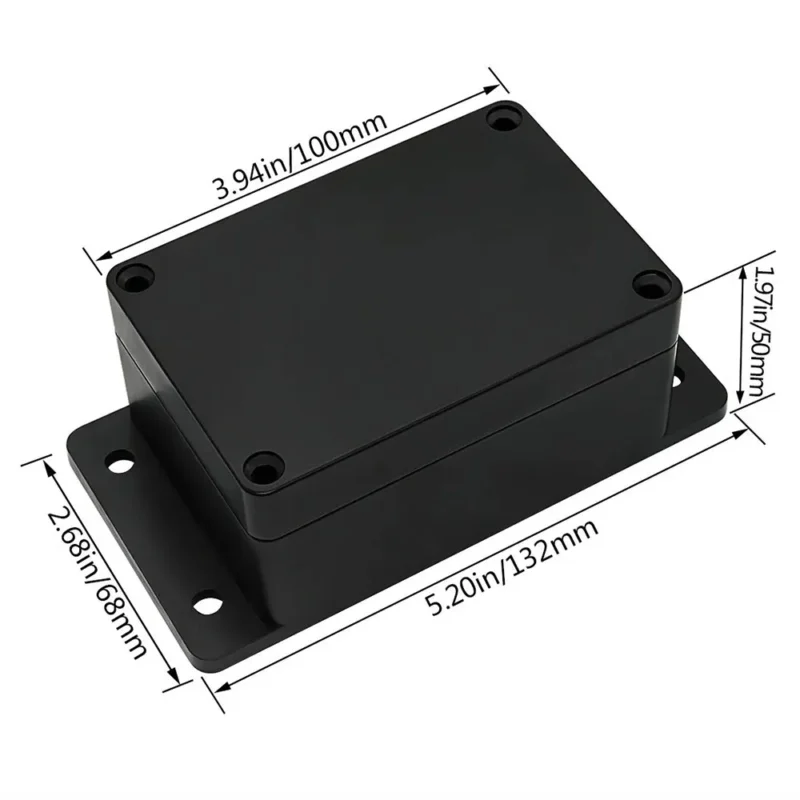

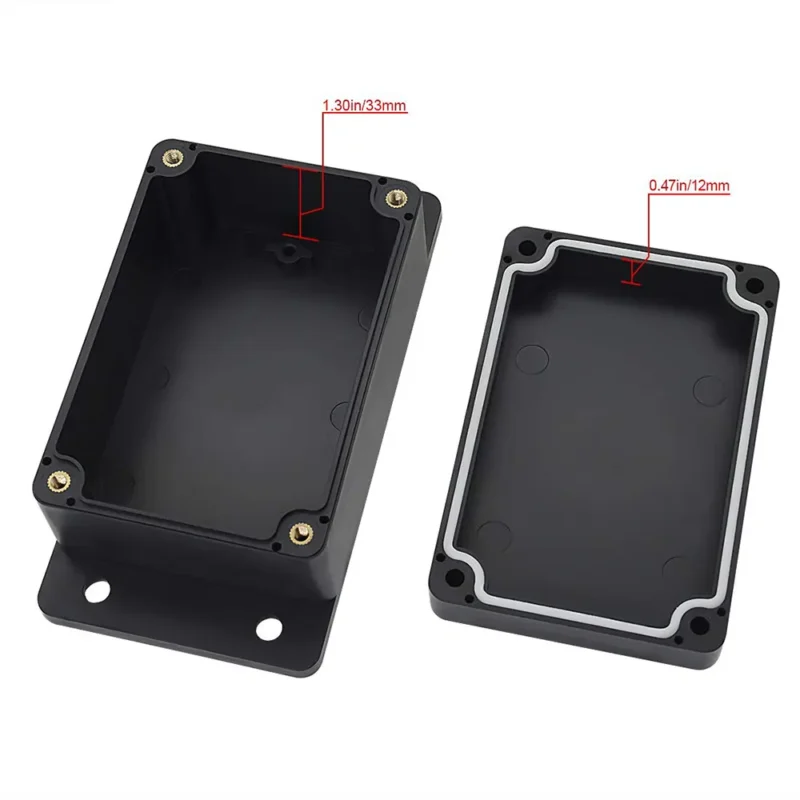

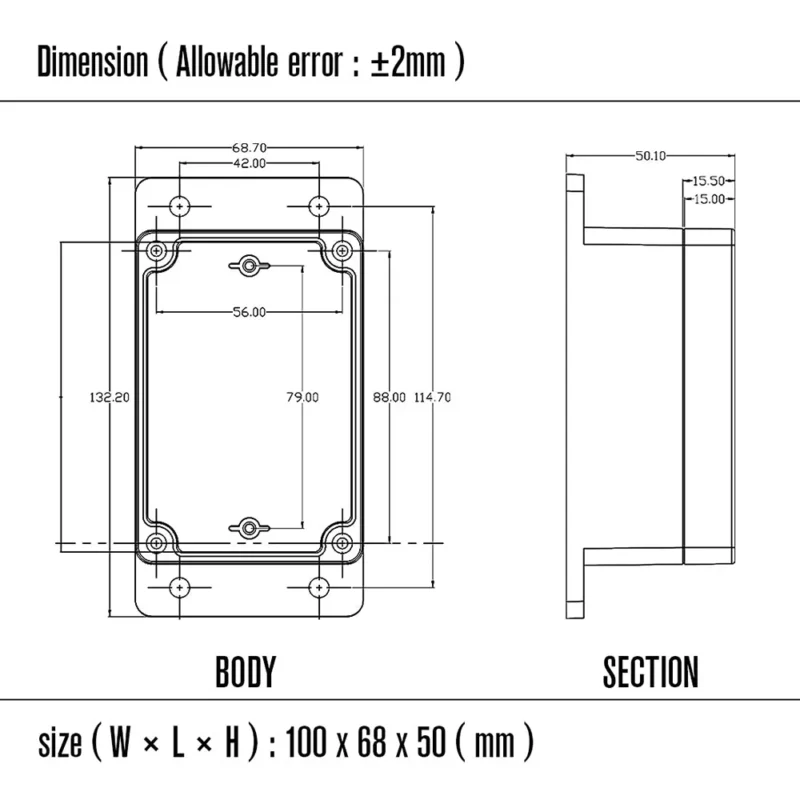

- Precise Dimensions – Outer dimensions: 100x68x50mm (3.94″x2.68″x1.97″); Inner dimensions: 94x62x45mm (3.7″x2.4″x1.7″)

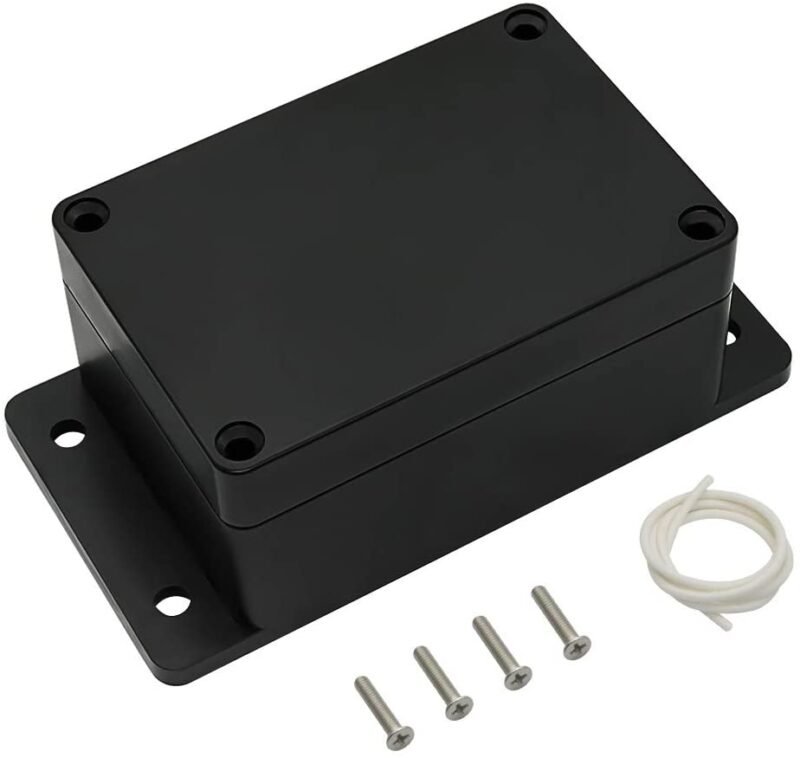

- Complete Kit – Package includes 2 junction boxes, 2 rubber grommets, and 8 installation screws
Waterproof Tip: For optimal IP65 waterproof performance, ensure the rubber grommet completely surrounds the lid. The elastic grommet can be stretched to proper length during installation on corner sections.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Junction Box |
| Color | Black |
| Materials | ABS Plastic, Rubber |
| Weatherproof Rating | IP65 (Waterproof and Dustproof) |
| Outer Dimensions | 100 x 68 x 50 mm (3.94″ x 2.68″ x 1.97″) (L x W x H) |
| Inner Dimensions | 94 x 62 x 45 mm (3.7″ x 2.4″ x 1.7″) (L x W x H) |
| Mounting Type | Fixed Ear Tab |
| Package Contents | 2 x Junction Boxes, 2 x Rubber Grommets, 8 x Screws |
| Dimensional Tolerance | ±2mm |
Product Highlights
- IP65 Waterproof and Dustproof Rating
- High-Quality ABS Plastic Construction
- Black Color for Discreet Installation
- Dimensions: 100x68x50mm (LxWxH)
- Fixed Ear Mounting Design
- Includes Rubber Grommet for Superior Sealing
- Built-in Brass Nuts for Repeated Installation
- Package Contains 2 Complete Units
- Suitable for Indoor and Outdoor Applications
Recommended Applications
This versatile waterproof junction box is ideal for a wide range of electrical installations requiring reliable protection from environmental elements. Its IP65 rating makes it particularly suitable for:
Note: This junction box provides reliable protection against rain, water splash, and dust ingress. It maintains waterproof integrity even when exposed to heavy rain or low-pressure water jets.
