What Are M16 Cable Gland Connectors?
Cable glands are essential components for managing cable entries in enclosures, control panels, and junction boxes. Among the many sizes available, M16 cable gland connectors are widely used in compact and mid-size wiring applications due to their balance of size, durability, and waterproof performance.
The LeMotech M16 cable gland is a premium IP68-rated cable sealing solution made from robust PA66 nylon and equipped with a reliable sealing ring. It ensures excellent cable retention, strain relief, and ingress protection — making it ideal for both indoor and outdoor electrical applications.
Key Features of LeMotech’s M16 Cable Gland
- IP68 waterproof rating for harsh environments
- Flame-retardant PA66 nylon construction
- Suitable for cable diameters from 4mm to 8mm
- Easy to install with threaded locking design
- UV and corrosion resistant
Whether you’re sealing a data cable in a plastic enclosure or securing wires in an outdoor light fixture, M16 glands are a compact and reliable solution.
Common Applications for M16 Cable Glands
M16 cable gland connectors are commonly used in:
- Plastic junction boxes and enclosures
- LED lighting systems
- Solar panel wiring
- Industrial automation control cabinets
- Outdoor power systems
With their high IP rating, they provide durable sealing performance even in challenging conditions.
How to Install an M16 Cable Gland
Installing a cable gland correctly is critical to maintaining waterproof performance. Follow these steps:
- Drill a hole in the enclosure to match the gland thread diameter (about 16mm).
- Insert the gland body through the hole from the outside.
- Pass the cable through the gland and ensure the sealing ring grips the cable tightly.
- Tighten the cap until secure, providing strain relief and a sealed fit.
Tip: Always check that your cable diameter falls within the gland’s supported range (4–8mm for M16).

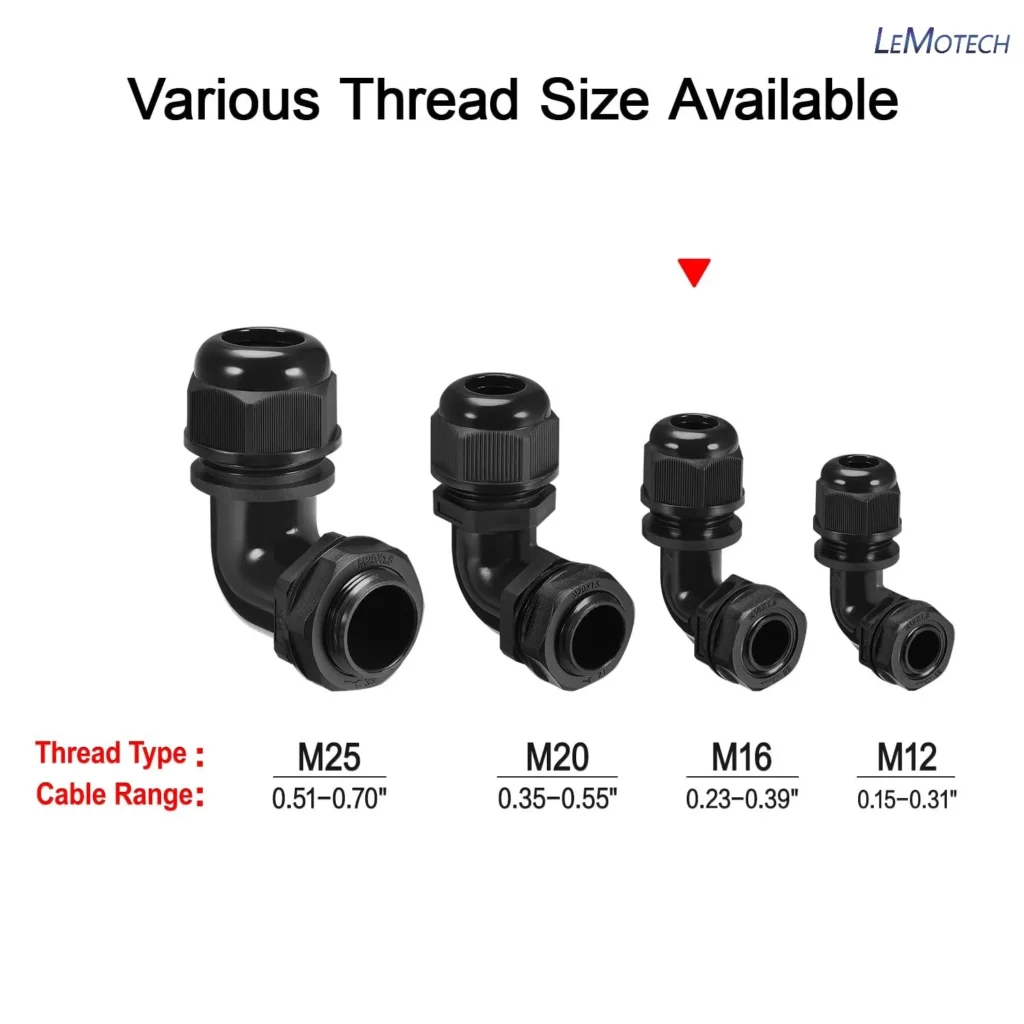

Choosing the Right Cable Gland Size
Proper sizing is essential for optimal performance. Here’s a quick reference:
| Gland Size | Clamping Range | Thread Outer Diameter |
|---|---|---|
| M12 | 3–6.5mm | 12mm |
| M16 | 4–8mm | 16mm |
| M20 | 6–12mm | 20mm |
| M25 | 9–16mm | 25mm |
Always confirm your cable’s outer diameter before selecting a gland.
Why Choose LeMotech?
LeMotech provides high-quality, IP-rated cable glands engineered for safety and performance. Our M16 cable gland connectors are designed for precision fit, fast installation, and long-term reliability.
With every product, you benefit from:
- Consistent product quality
- Certified flame-retardant nylon materials
- Multiple size options for all cable diameters
- Competitive pricing and bulk packs available
- Fast delivery and expert support
Conclusion
Whether you’re working on a waterproof enclosure, solar wiring, or outdoor lighting setup, LeMotech’s M16 cable gland connectors offer a simple and effective way to secure and seal cables.
Explore more details or place an order here:
View the Product Page
